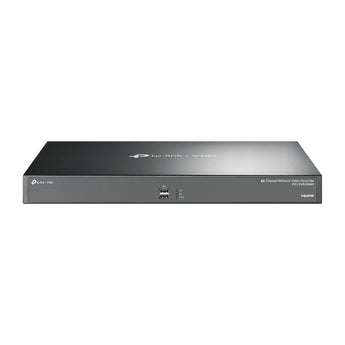

VIGI NVR4064H, TP-LINK VIGI 64 Channel Network Video Recorder H.265+, 4 SATA Interfaces

Specification

Video and audio
IP video input 64-channel
Incoming bandwidth default: 260 Mbps
Extended bandwidth mode: 320 Mbps
Outgoing Bandwidth Default: 180 Mbps
Extended bandwidth mode: 320 Mbps
HDMI output resolution 2 channels
• HDMI1 Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• HDMI2 Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA output resolution 1 channel, resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video output mode • HDMI1/HDMI2 independent output
• HDMI1/VGA independent output

Note: HDMI2 and VGA cannot work at the same time. If both connections are established, HDMI2 takes precedence and functions as the main output. Multi-view display 1,4,6,8,9,16,25,32,36,49,64
DECODE
Audio compression G.711A/G.711U/G.726
Video compression H.265+/H.265/ H.264+/H.264
Recording resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Reproducción sincrónica 16-Channel†
Capacity • 25fps:
16-ch@2MP, 32-ch@720P, 64-ch@D1

• 30fps:
4-ch@8MP, 6-ch@5MP, 8-ch@4MP
Record management
Recording mode • Manual recording
• Recording schedule
• Motion detection recording
Playback mode • Instant playback
• Normal playback
• Tag play
• Play events
Backup mode • Normal backup
• Video clip backup
Playback function • Play
• Pause
• Stop
• Fast forward
• Fast rewind
• Play on screen
• Full screen
• Video clip
• Export clip
• Digital zoom
• Record blocking
• Turn audio on/off
Red
Protocol UPnP (Plug and Play), NTP (Network Time), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile phone access Android, iOS
Web browser Chrome (57+), Firefox (52+), Edge (91+)
Compatibility ONVIF Profile S/T/G, CGI
External interface
Network interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface: 2 front USB 2.0 ports, 1 rear USB 3.0 port
Audio interface: 1-channel RCA input; 1-channel RCA output
Alarm input/output 16/4
Serial interface: 1, RS232
Power: 1× AC jack
Reset button: 1
Speaker: Not available
eSATA 1
HDMI 2
VGA 1
HARD DISCO
SATA 4 SATA interfaces
Capacity: Up to 16TB capacity for each hard drive*
Alarm system
General alarm • Motion detection
• Video tampering
• Scene change detection
• Line crossing detection
• Intrusion detection
• Region entry detection
• Region exit detection
• Discovering idleness
• Object abandonment/removal detection
• Vehicle detection
• Human discovery
• Abnormal sound detection
• Smart frame
Note: The alarm function requires the use of a camera. Anomaly Alarm • Video Loss
• Offline and IP conflict
• Disk exception
• Login exception
• Fan exception
Note: The alarm function requires the use of a camera.
Alarm connection • Recording
• White light alarm
• Buzzer
• Magazine
• Sound alarm
Note: The alarm function requires the use of a camera.
General
Storage temperature -40–70 °C
Storage humidity 10%~90% RH non-condensing
Package container • VIGI network video recorder
• Mouse
• Installation guide
• Power cable
• HDD power cables
• HDD data cables
• Terminal blocks
• Mounting brackets
• Screws
• Rubber feet
Operating temperature • NVR: -10–55 °C
Operating humidity 10%~90% RH non-condensing
Dimensions (H x W x D) 440 × 330 × 44 mm
External power supply 100-240 VAC, 50 to 60HZ, 1.5A
Access weight 4.0 kg#
Access weight 5.0 kg#
Power supply 100-240 VAC, 50 to 60Hz, 1.5A
Power consumption • 6.95 W (without disk)
• 48.38 W (with disk)
Certificates CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF
