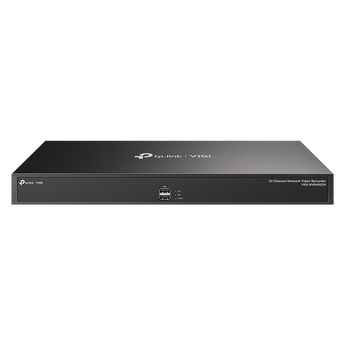

TP-Link VIGI NVR4032H, 32 Channel Network Video Recorder, H.265+, 4 SATA Interfaces

Specification

Brand: TP-Link
Model: VIGI NVR4032H
Type: Network Video Recorder (NVR)
Maximum number of cameras: 32 channels
Video codec: H.265+, H.265, H.264
Max. video resolution: 12MP

Internal memory and storage
Memory interface: 4 × SATA ports
Supported hard drives: 3.5" HDD (per SATA port)
Max. capacity per disk: ≥10TB (depending on disk model)
Total capacity: ≥40TB
RAID support: Not specified

Video output
Video output ports: HDMI ×1, VGA ×1
Simultaneous video output: Yes (Dual Monitor Support)

Network interface
LAN port: 1 × RJ45 10/100/1000 Mbps
ONVIF support: Yes (compatible with IP cameras from various brands)
IP camera automatic identification: Yes
Bandwidth: ≥160 Mbps for recording / ≥160 Mbps for transmission

Audio support
Audio recording: Supported
Audio channels: Depends on camera configuration

Management and access
User interface: Web browser, VIGI App (iOS/Android), VIGI Security Manager (Windows)
Multi-user access: Yes
Motion Detection: Yes
Scheduled recording: Yes
Local and remote download: Yes

USB interfaces
USB ports: 1 × USB 2.0, 1 × USB 3.0
Usage: Extracting archive, mouse connection, firmware update

Physical characteristics
Case Type: Rack Mount / Desktop
Power supply: 100–240V AC, 50/60Hz
Max. consumption: Depends on HDDs and usage
Operating temperature: 0°C – 40°C
Size and weight: According to manufacturer

Packaging contents
NVR device ×1
Power cable ×1
Ethernet cable ×1
Installation kit ×1
User Guide

Compatibility and integration
Compatibility: VIGI IP cameras, ONVIF-compatible cameras from other brands
System expansion: via network, multi-zone control support
