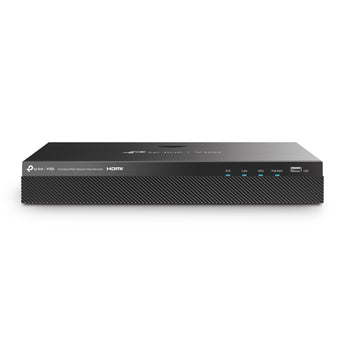

TP-Link VIGI NVR2016H-16MP, 16 Channel Network Video Recorder, H.265+, PoE+ 140W, 2 SATA Interfaces

Specification

Brand: TP-Link
Model: VIGI NVR2016H-16MP
Type: Network Video Recorder (NVR)
Maximum number of cameras: 16 channels
Video codec: H.265+, H.265, H.264
Max. video resolution: 8MP (4K)

PoE function
PoE Ports: 16 × RJ45 PoE Port
PoE standard: IEEE 802.3af/at (PoE/PoE+)
Total PoE power: 140W
PoE Budget Control: Yes (per channel power adjustment possible)

Internal memory and storage
Memory interface: 2 × SATA ports
Supported hard drives: 3.5" HDD
Max. capacity per disk: ≥10TB
Total capacity: ≥20TB
RAID support: Not specified

Video output
Video output ports: HDMI ×1, VGA ×1
Simultaneous video output: Yes (Dual Display support)
Image mode: Multi-channel split views

Network interface
LAN port: 1 × RJ45 10/100/1000 Mbps
PoE ports: 16 × PoE (simultaneous video and power supply)
ONVIF support: Yes
Bandwidth: ≥128 Mbps for recording / ≥128 Mbps for transmission

Audio support
Audio recording: Supported (depending on camera model)
Audio channels: via IP cameras

Management and access
User interface: Web browser, VIGI App (iOS/Android), VIGI Security Manager (Windows)
Multi-user access: Yes
Motion Detection: Yes
Scheduled recording: Yes
Remote control and download: Yes

USB interfaces
USB ports: 1 × USB 2.0, 1 × USB 3.0
Usage: File transfer, mouse connection, system update

Physical characteristics
Case Type: Desktop / Rack Mount
Power supply: 100–240V AC, 50/60Hz
Max. consumption: approx. 160W (including PoE)
Operating temperature: 0°C – 40°C
Dimensions: According to manufacturer
Weight: Depends on the number of discs

Packaging contents
NVR device ×1
Power cable ×1
Ethernet cable ×1
Installation kit ×1
User Guide

Compatibility and integration
Compatibility: TP-Link VIGI IP cameras, as well as other brands compatible with ONVIF
Multi-location management: Supported
System expansion: possible with network integration
