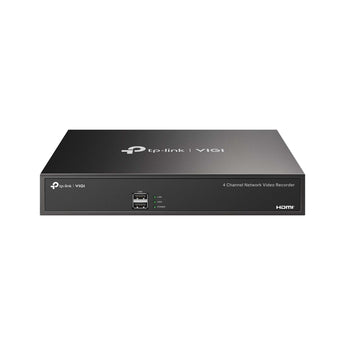

TP-Link VIGI NVR1004H, 4 Channel Network Video Recorder

Specification

Brand: TP-Link
Model: VIGI NVR1004H
Type: Network Video Recorder (NVR)
Maximum number of cameras: 4 channels
Video codec: H.265+, H.265, H.264
Max. Video Resolution: 5MP (2560 × 1920)

Internal memory and storage
Memory interface: 1 × SATA port
Supported hard drive: 3.5" HDD
Max. disk capacity: ≥10TB
RAID support: No

Video output
Video output ports: HDMI ×1, VGA ×1
Simultaneous video output: Yes
Image mode: single channel or split views (multi-window)

Network interface
LAN port: 1 × RJ45 10/100 Mbps
ONVIF support: Yes
Automatic detection of IP cameras: Yes
Max. Bandwidth: ≥40 Mbps

Audio support
Audio channels: Depends on camera support
Audio recording: Supported by ONVIF compatible cameras

Management and access
User interface: Web browser, VIGI App (iOS/Android), VIGI Security Manager (Windows)
Multi-user access: Yes
Motion Detection: Yes
Scheduled recording: Yes
Remote control and recording download: Yes

USB interfaces
USB ports: 1 × USB 2.0
Usage: File transfer, mouse connection

Physical characteristics
Case type: Desktop
Power supply: DC 12V
Max. consumption: approx. 10W (depending on HDD)
Operating temperature: 0°C – 40°C
Dimensions: approximately 200 × 200 × 45 mm
Weight: Approximately 0.8 kg (without disc)

Packaging contents
NVR device ×1
Power adapter ×1
Ethernet cable ×1
Mouse ×1
User Guide

Compatibility and integration
Compatibility: TP-Link VIGI cameras and other ONVIF-compatible brands
Remote monitoring: Supported by app and computer
