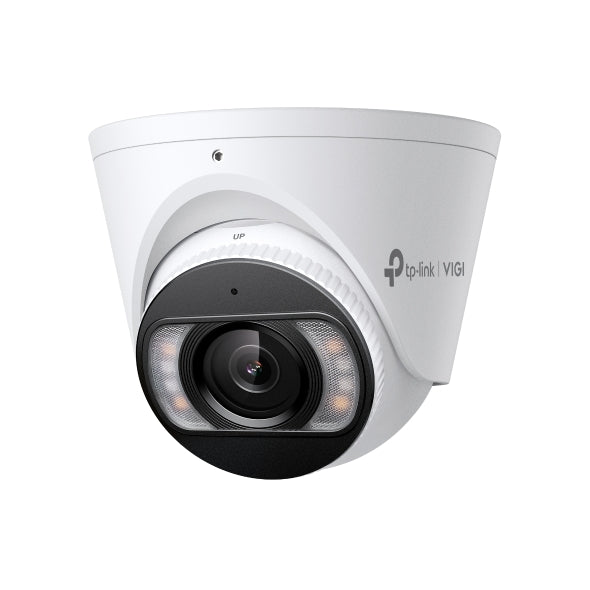

TP-LINK VIGI InSight S455(4mm)

Specification

Brand: TP-Link
Series: VIGI
Type: Network camera
Serial/Model Code: (Fill in as needed)
Camera
Image sensor: 1/2.7” Progressive Scan CMOS
Shutter speed: 1/3 – 1/10000 second
Slow Shutter: Yes
Minimum illumination: 0.005 Lux; 0 Lux with IR or white light
Day/Night Mechanism: IR Filter
Day/Night Switching: Combined / Scheduled / Automatic
Lens
Type: Fixed focal lens
Focal length: 2.8 mm / 4 mm
Aperture: F1.6
Viewing angle:
2.8 mm – horizontal 111.4°, vertical 58.8°, diagonal 134°
4 mm – horizontal 88°, vertical 46°, diagonal 105.4°
Lens mount: M12*P0.5
DORI distance:
2.8 mm – detection 64 m, observation 27 m, recognition 13 m, identification 6 m
4 mm – detection 80 m, observation 33 m, recognition 16 m, identification 8 m
Angle adjustment (manual): Pan 0°–360°, Tilt 0°–85°, Rotation 0°–360°
Lighting
IR LED: 4 units, range 30 m, wavelength 850 nm
White LED: 4 units, range 30 m
Lighting control: automatic / scheduled / always on / always off
Video
Maximum resolution: 2880×1620
Main stream: 1–30fps (50/60Hz), resolutions – 2880×1620, 2688×1520, 2304×1296, 2048×1280, 1920×1080, 1280×720
Auxiliary stream: 1–30fps, resolutions – 848×480, 704×576, 640×480, 640×360, 352×288, 320×240
Bitrate control: CBR, VBR
Video compression: Main stream – H.265+/H.265/H.264+/H.264; Substream – H.265/H.264
Bitrate: Main stream – 256 Kbps–6 Mbps; Substream – 64 Kbps–512 Kbps
Settings: Mirror view, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, infrared light cut, HLC adjustment
Image enhancement: BLC, 3D DNR, HLC, Smart IR
Dynamic range: 120 dB
Note: Only DWDR mode is available when People & Vehicle Analytics is enabled.
SNR: ≥52 dB
Privacy Masks: Up to 4 zones
ROI: 1 zone
OSD Settings: Supported
Audio
Two-way communication: Yes
Audio input: Yes
Audio output: Yes
Audio compression: Yes
Sampling frequency: 8 kHz
Ambient noise filtering: Yes
Audio bitrate: 64 Kbps (G.711 alaw)
Network
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF support: Yes (Profile S/T/G)
Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Browser support: Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+
Cloud support: Yes
Security: Password protection, HTTPS encryption, IP filter, Digest authentication
Alarms and events
Smart events: detection of intrusion, line crossing, zone entry/exit, object leaving or removing, stumbling, human or vehicle detection, noise anomaly, and scene change
Main events: motion detection (with human and vehicle classification), video distortion, illegal entry
Alarm response: recording to memory card, sending message, sound warning, white light on
Interfaces
Network port: 1× RJ45 10/100M Ethernet (PoE)
Reset button: Yes
Power: DC 12V ±5%, max. 11W, PoE 802.3af/at (max. 12W)
Memory: MicroSD card up to 512GB
Built-in microphone: Yes (records within 15 feet)
Built-in speaker: Yes
General characteristics
Operating temperature: -30°C–60°C
Storage temperature: -40°C–60°C
Humidity: Up to 95% (non-condensing)
Material: Metal
Weight: 0.48 kg
Power supply: 12V DC ±5% (max. 11W, 5.5 mm coaxial jack) or PoE 802.3af/at (max. 12W)
Protection: IP67
Dimensions: 111×111×83.7 mm (4.4×4.4×3.3 inches)
Package Contents: VIGI Network Camera, Quick Installation Guide, Waterproof Cable Adapters, Mounting Accessories
Certificates: CE, NTRA, VCCI, KC, BSMI, FCC, IC
