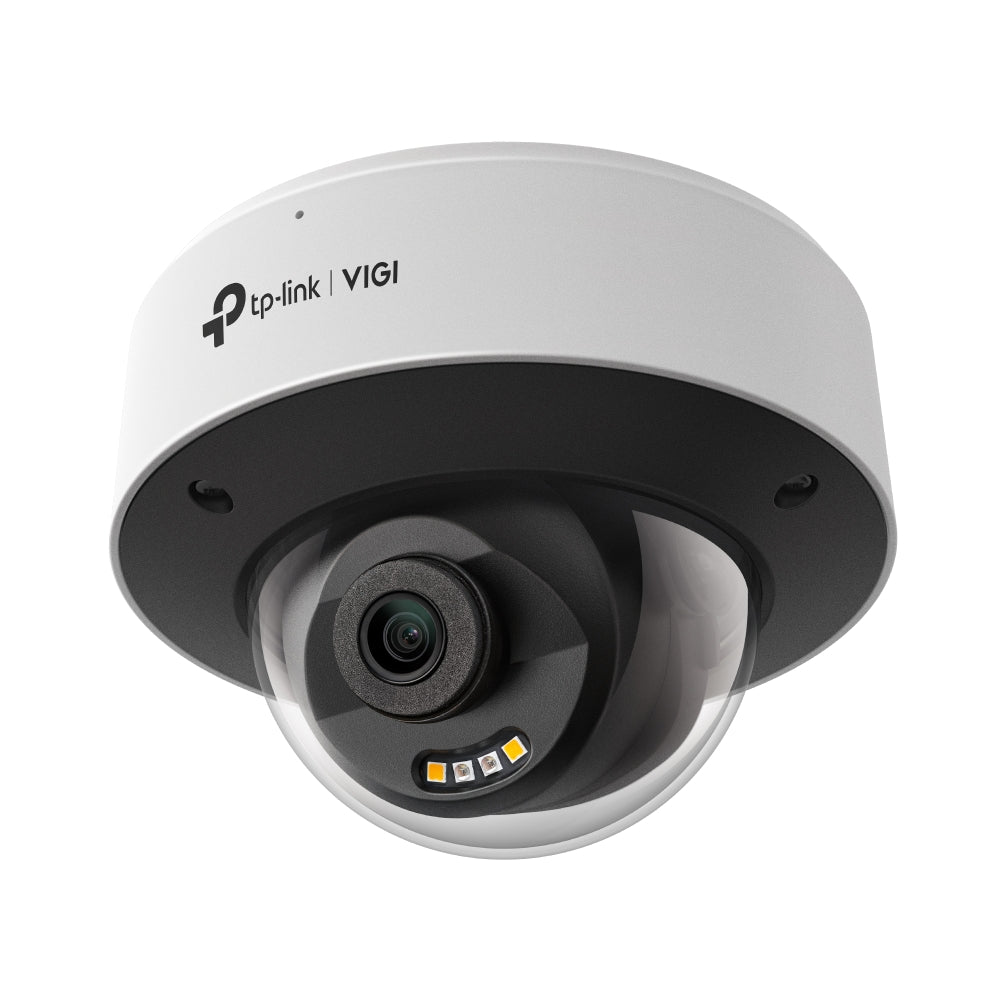

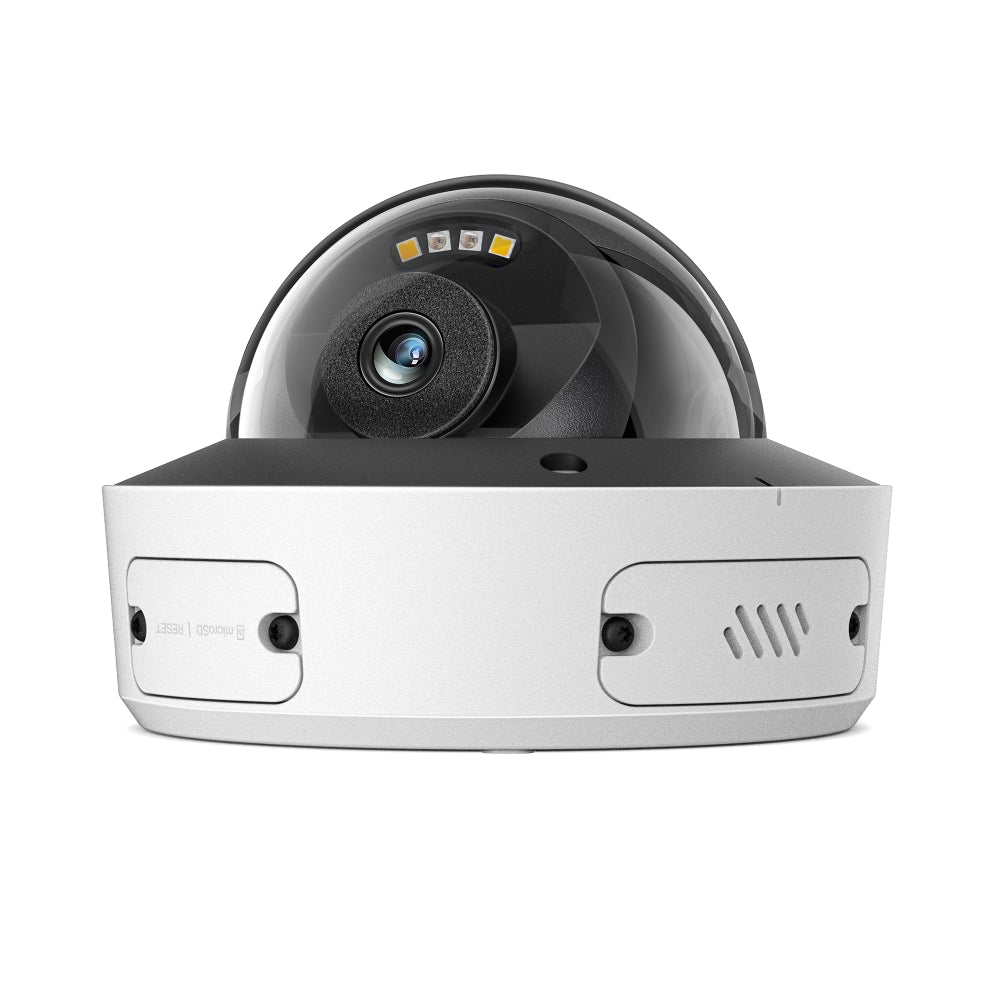

TP-LINK VIGI InSight S285(4mm)

Specification

Brand: TP-Link
Series: VIGI
Type: Network camera
Serial/Model Code: (Fill in as needed)

Camera
Image sensor: 1/2.7” Progressive Scan CMOS
Shutter speed: 1/3 – 1/10000 second
Slow shutter: Yes
Minimum illumination: 0.005 Lux; 0 Lux with IR or white light
Day/Night Mechanism: IR Filter
Day/Night Switching: Combined / Scheduled / Automatic

Lens
Type: Fixed focal lens
Focal length: 2.8 mm / 4 mm
Aperture: F1.6
Viewing angle:
2.8 mm – horizontal 110°, vertical 58.1°, diagonal 133.5°
4 mm – horizontal 88°, vertical 46°, diagonal 105.4°
Lens mount: M12*P0.5
DORI distance:
2.8 mm – detection 85 m, observation 35 m, recognition 17 m, identification 8 m
4 mm – detection 107 m, observation 44 m, recognition 21 m, identification 11 m
Angle adjustment (manual): Pan 0°–346°, Tilt 0°–75°, Rotation 0°–355°

Lighting
IR LED: 2 units, range 30 m, wavelength 850 nm
White LED: 2 units, range 30 m
Lighting control: automatic / scheduled / always on / always off

Video
Maximum resolution: 3840×2160
Main stream: 1–25fps (50/60Hz), resolutions – 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Auxiliary stream: 1–25fps, resolutions – 848×480, 704×576, 640×480, 640×360, 352×288, 320×240
Bitrate control: CBR, VBR
Video compression: Main stream – H.265+/H.265/H.264+/H.264; Substream – H.265/H.264
Bitrate: Main stream – 256 Kbps–8 Mbps; Substream – 64 Kbps–512 Kbps
Note: When rotating the image (90° or 270°) or in HDR mode, the frame rate is reduced to a maximum of 20fps.

Settings: Mirror view, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, infrared light cut, HLC adjustment
Image enhancement: BLC, 3D DNR, HLC, Smart IR
Dynamic range: 120 dB
Note: Only DWDR is supported when People & Vehicle Analytics is enabled.
SNR: ≥52 dB
Privacy Masks: Up to 4 zones
ROI: 1 zone
OSD Settings: Yes

Audio
Two-way communication: Yes
Audio input: Yes
Audio output: Yes
Audio compression: Yes
Sampling frequency: 8 kHz
Noise filtering: Yes
Audio bitrate: 64 Kbps (G.711 alaw)

Network
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF support: Yes (Profile S/T/G)
API: Open Network Video Interface
Client: VIGI App, Web UI, VIGI VMS, Utility
Browsers: Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+
Cloud support: Yes
Security: Password protection, HTTPS encryption, IP filter, Digest authentication

Alarms and events
Smart events: detection of intrusion, line crossing, zone entry/exit, object leaving or removing, stumbling, human or vehicle detection, noise anomaly, and scene change
Main events: motion detection (with human and vehicle classification), camera tampering attempt, illegal entry
Alarm response: recording to memory card, sending message, sound warning, white light on

Interfaces
Network port: 1× RJ45 10/100M Ethernet (PoE)
Reset button: Yes
Power: DC 12V ±5%, max. 11W; PoE 802.3af/at (max. 12.3W)
Memory: MicroSD card up to 512GB
Built-in microphone: Yes (records within a 15-foot radius)
Built-in speaker: Yes

General characteristics
Operating temperature: -30°C – 60°C
Storage temperature: -40°C – 60°C
Humidity: Up to 95% (non-condensing)
Material: Metal
Weight: 0.62 kg
Power supply: 12V DC ±5%, max. 11W (with 5.5 mm coaxial connector) or PoE 802.3af/at, class 0, max. 12.3W
Protection: IP67 waterproof, IK10 vandal-proof
Dimensions: 122 × 122 × 89 mm (4.80 × 4.80 × 3.50 inches)

Package contents:
• VIGI network camera
• Quick installation guide
• Waterproof cable adapters
• Mounting accessories

Certificates: CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
