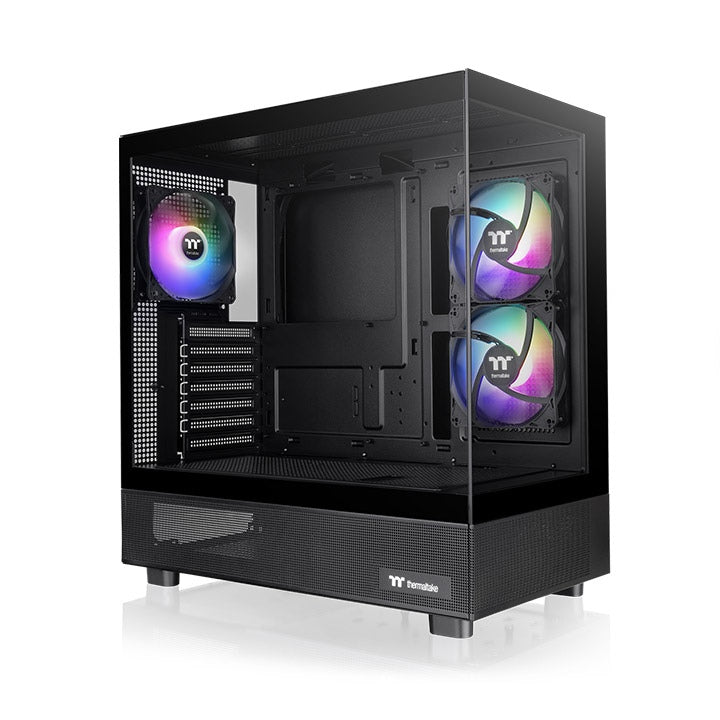

THERMALTAKE View 270 Plus TG ARGB, CASE, E-ATX, 120mmx3, AIO 360mm, air 180mm, GPU 420mm, 2 x 3.5", Type-C, USB 3.0x2, Audi

Specification

P/N: CA-1Y7-00M1WN-01
Series: View
Case type: Mid-tower
Dimensions (height x width x depth): 456 x 230 x 454 mm
(18 x 9.1 x 17.9 inches)
Net weight: 6.35 kg / 14 lbs.
Panel: Tempered glass x 2
Color: Black
Material: SPCC
Cooling system
Right (input):
120 x 120 x 25 mm ARGB Lite fan (1000 rpm, 22.3 dBA) x 2
Rear (exit):
120 x 120 x 25 mm ARGB Lite fan (1000 rpm, 22.3 dBA) x 1
Drive ports: 2 x 3.5”, 1 x 2.5” or 2 x 2.5”
Expansion slots: 7
Motherboards: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12" x 9.6" (ATX), 12" x 13" (E-ATX)

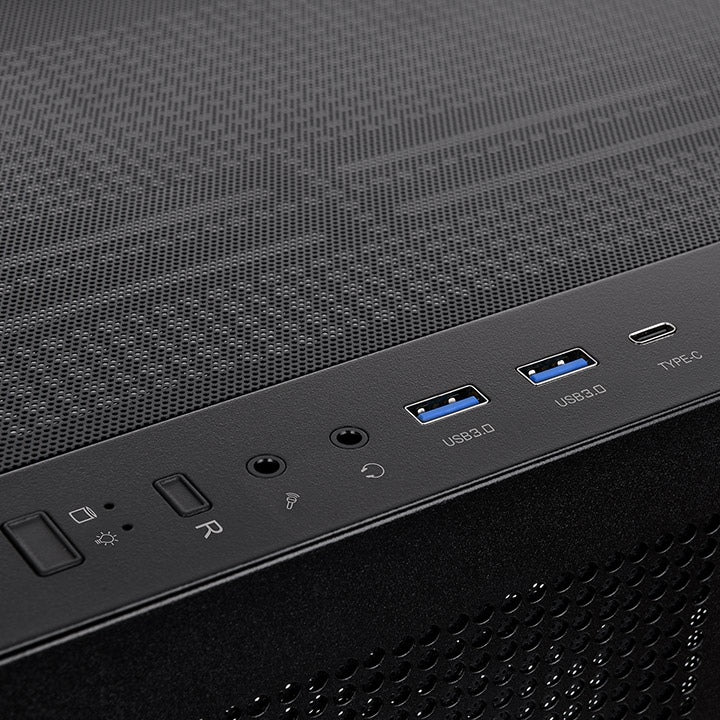

Input/Output Port: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
Power supply: Standard PS2 power supply (optional)
Fan base
Top:
3 x 120 mm, 2 x 120 mm, 1 x 120 mm
2 x 140 mm, 1 x 140 mm
Right (M/B side):
2 x 120 mm, 1 x 120 mm
Rear:
1 x 120 mm, 1 x 140 mm
Food cover:
3 x 120 mm, 2 x 120 mm, 1 x 120 mm
Radiator support top:
1 x 360 mm, 1 x 240 mm, 1 x 120 mm
Rear:
1 x 120 mm
CLEARANCE CPU cooler maximum height: 180 mm
VGA maximum length: 420 mm
Maximum power supply length: 220 mm
