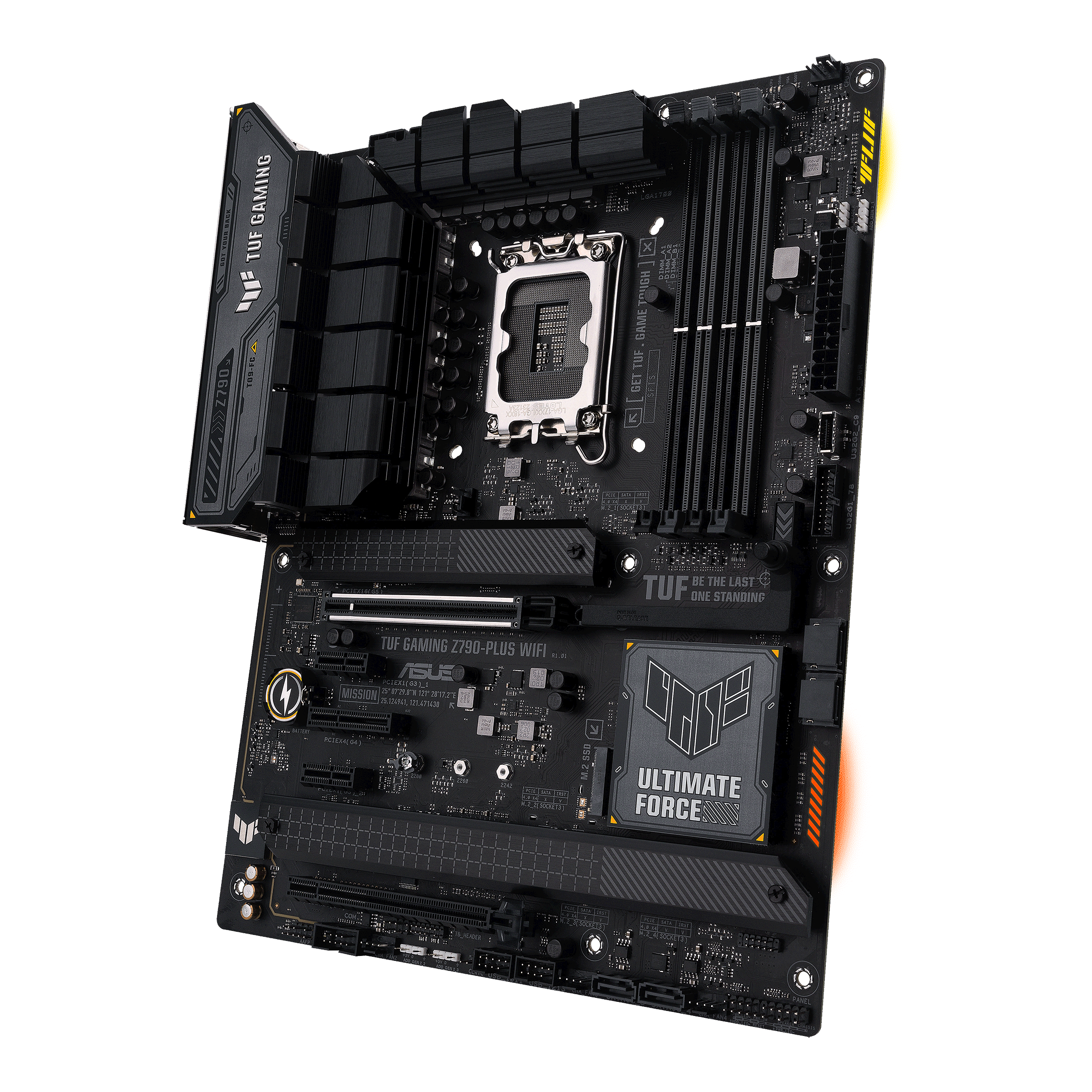

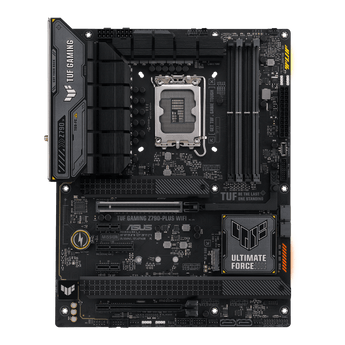

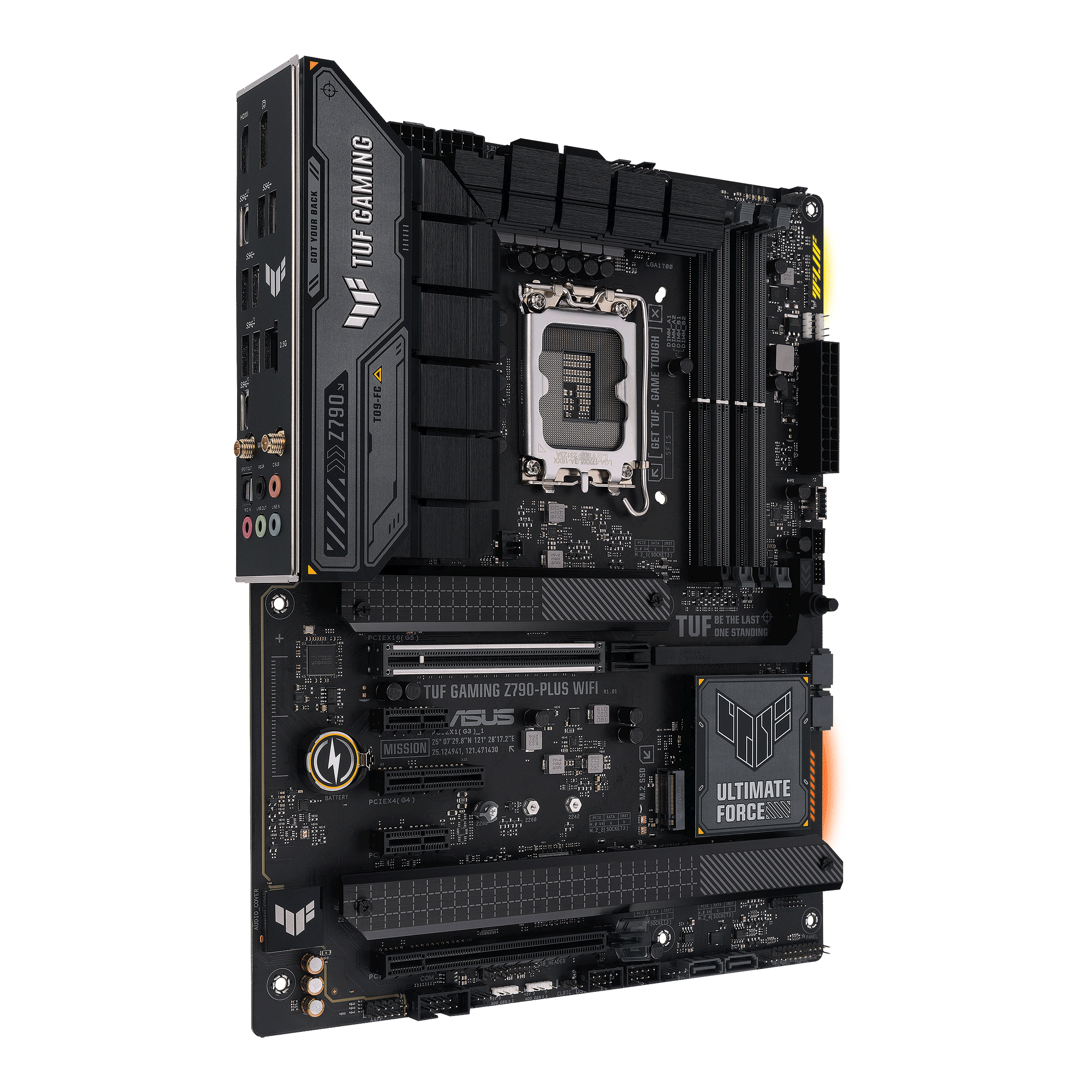

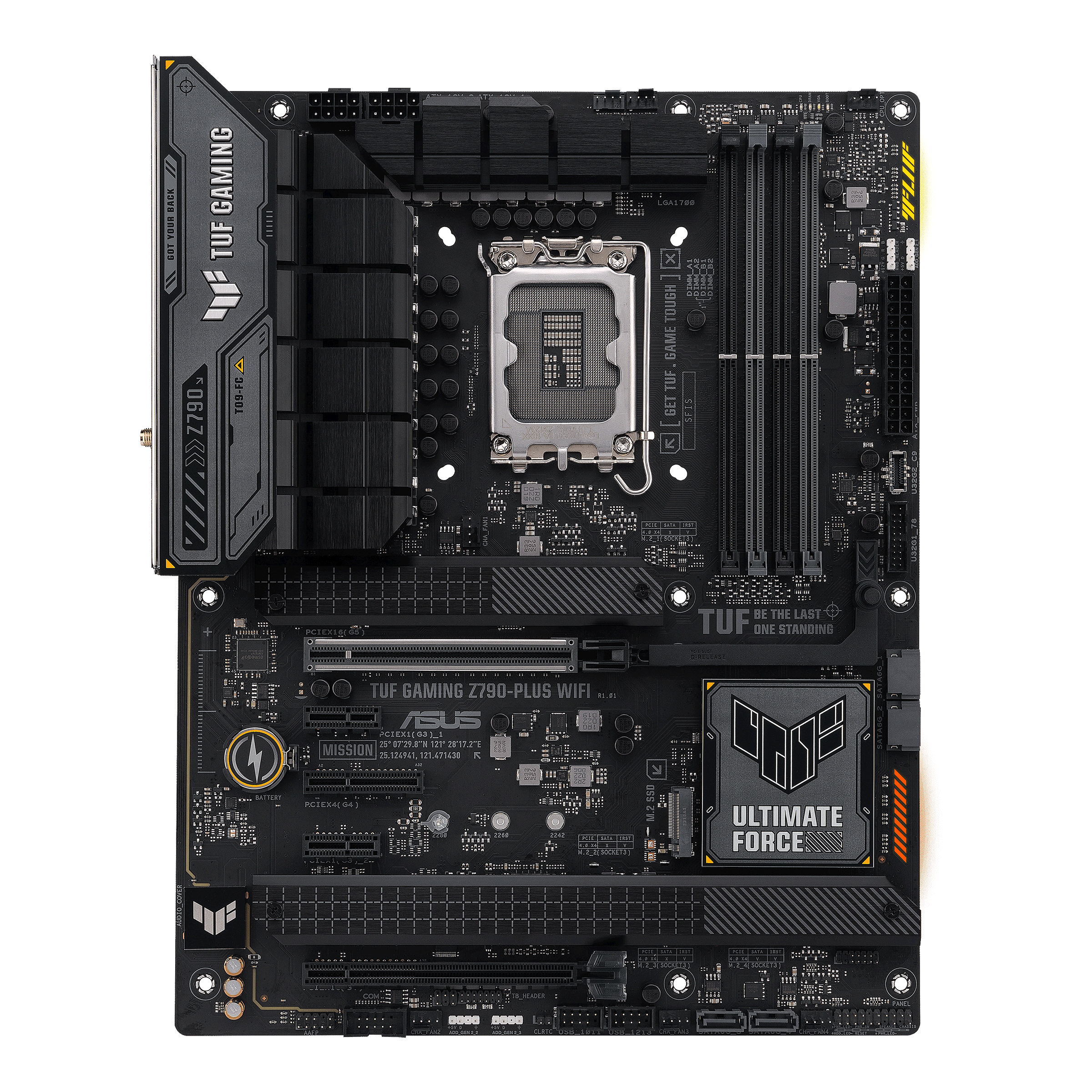

ASUS TUF GAMING Z790-PLUS WIFI

Specification

Main features
Brand / Model: ASUS TUF GAMING Z790-PLUS WIFI
Chipset: Intel® Z790
Form factor: ATX
Processor socket: LGA 1700
Support: Intel® 12th, 13th, and 14th Generation Core™, Pentium® Gold, and Celeron® processors
Memory
Slots: 4 x DIMM
Support: DDR5 7200+ (OC) MHz
Max. Capacity: 192 GB
Channel: Dual Channel
Expansion slots
1 x PCIe 5.0 x16 slot (SafeSlot supported)
2 x PCIe 4.0 x16 slots (in x4 mode)
1 x PCIe 3.0 x1 slot
Storage
M.2 slots: 4 x M.2 (PCIe 4.0 x4)
SATA: 4 x SATA 6Gb/s
Graphic support
Integrated GPU support (CPU dependent)
Output ports:
1 x HDMI 2.1
1 x DisplayPort 1.4
Network and connectivity
LAN: Intel® 2.5Gb Ethernet
Wireless: WiFi 6E
Bluetooth®: Bluetooth v5.3
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
DTS® support
Rear panel
1 x HDMI 2.1
1 x DisplayPort 1.4
1 x USB 3.2 Gen 2x2 Type-C®
2 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
1 x RJ-45 LAN
1 x WiFi Module Connectors
5 x Audio Jack + 1 x Optical S/PDIF out
Food
Power Connector: 24-pin ATX, 8+8 pin ProCool II CPU Power
VRM: 16+1 DrMOS Power Stages
Dimensions
Form factor: ATX
Dimensions: 30.5cm x 24.4cm
Additional features
TUF Components: Military-grade chokes, capacitors, and MOSFETs
Cooling: Large heatsinks, M.2 Q-Latch, VRM Heatsink
AURA SYNC RGB: Supported
BIOS FlashBack™: Yes
