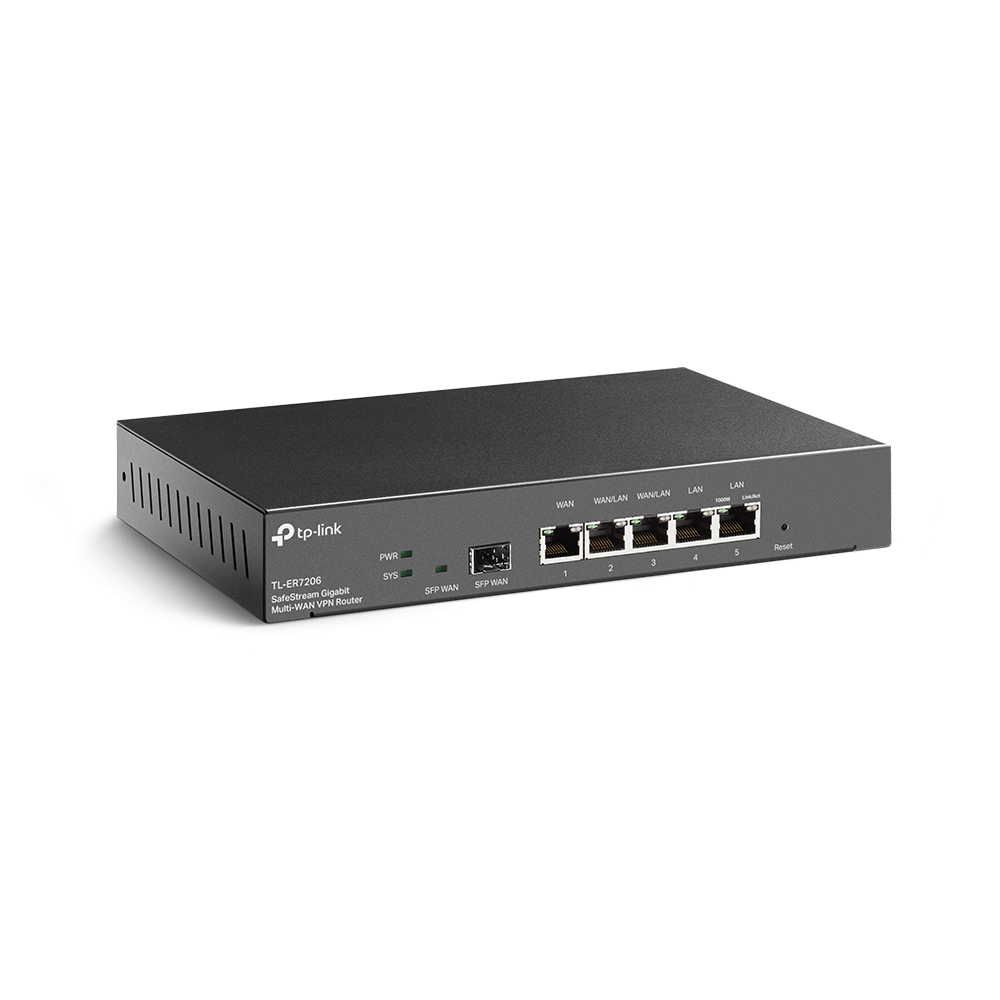

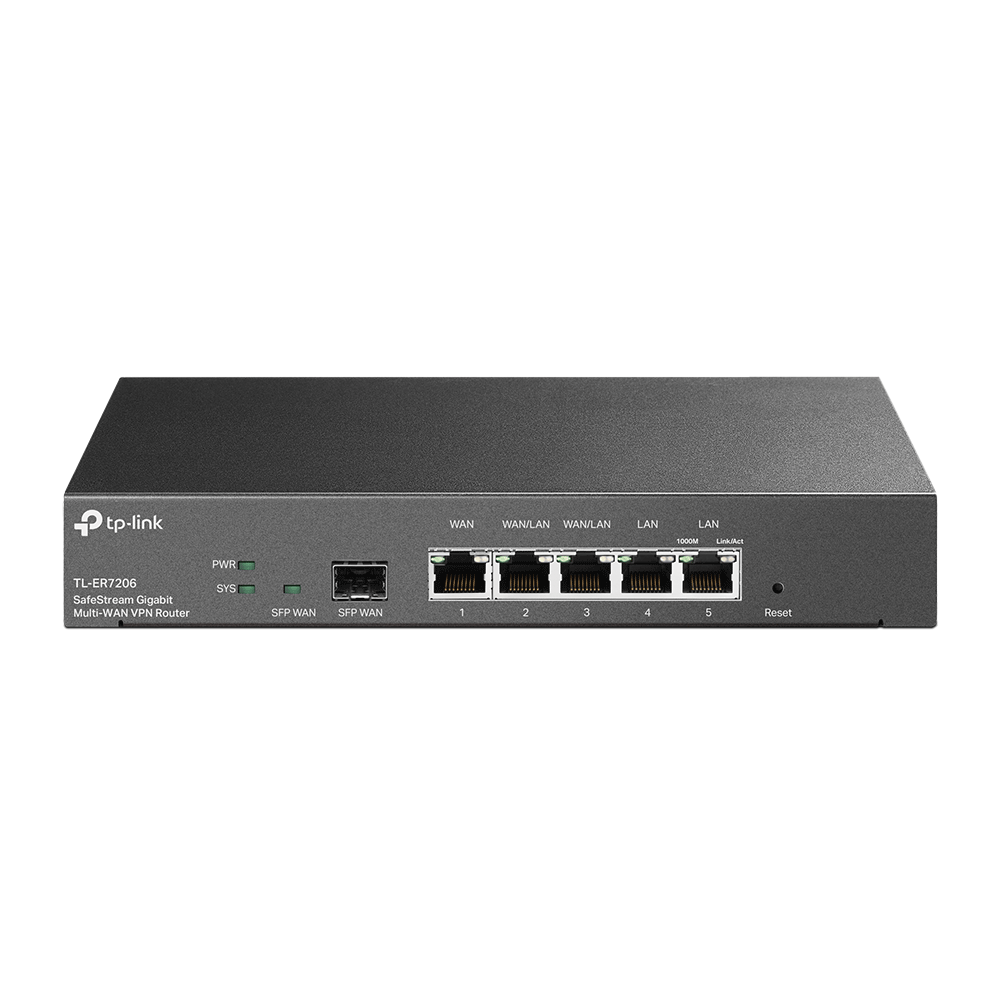

ER7206, TP-Link, Omada Gigabit VPN Router

Specification

Hardware features
Standards and protocols • IEEE 802.3, 802.3u, 802.3ab
• TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP

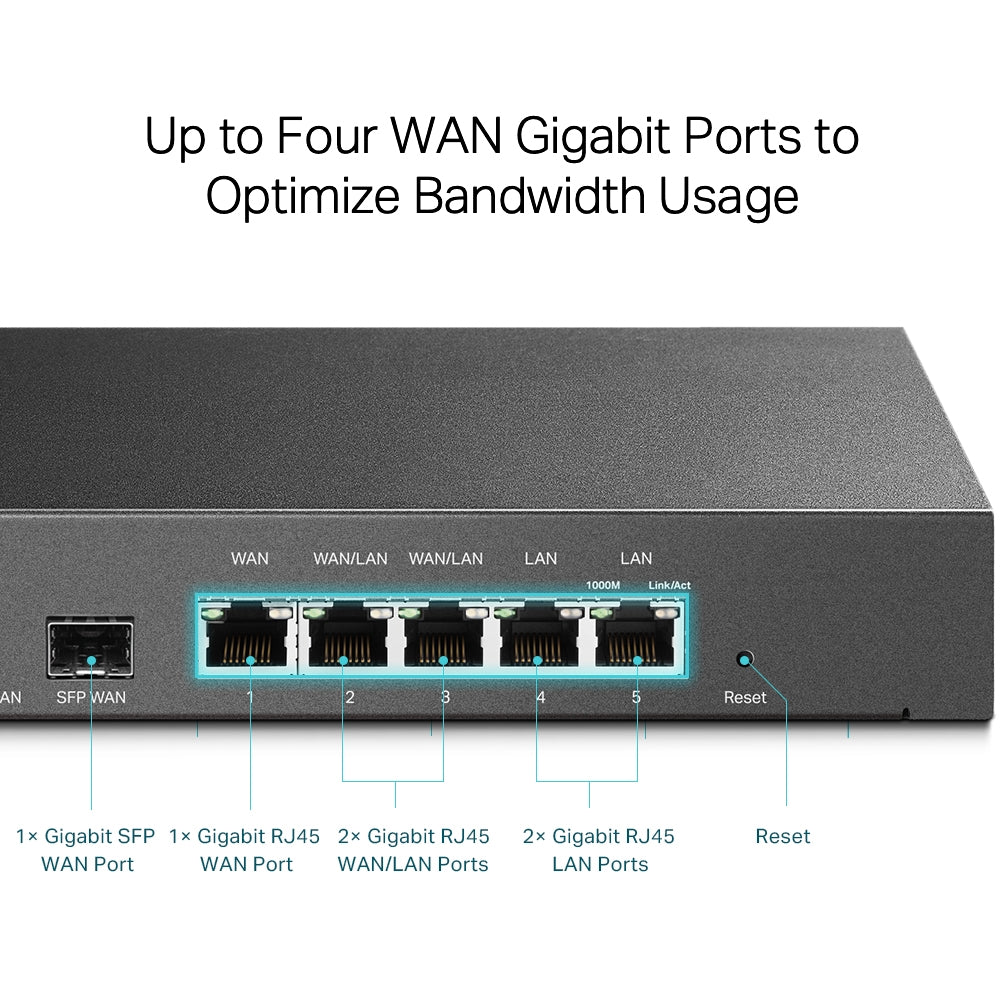

Connections • 1 fixed Gigabit SFP WAN port
• 1 fixed Gigabit RJ45 WAN port
• 2 fixed Gigabit RJ45 LAN ports
• 2 interchangeable Gigabit RJ45 WAN/LAN ports
Network connectivity • 10BASE-T: UTP category 3, 4, 5 cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
• 100BASE-TX: UTP Category 5, 5e cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100m)
• 1000BASE-T: UTP Category 5, 5e, 6 cable (max. 100m)
Reset button

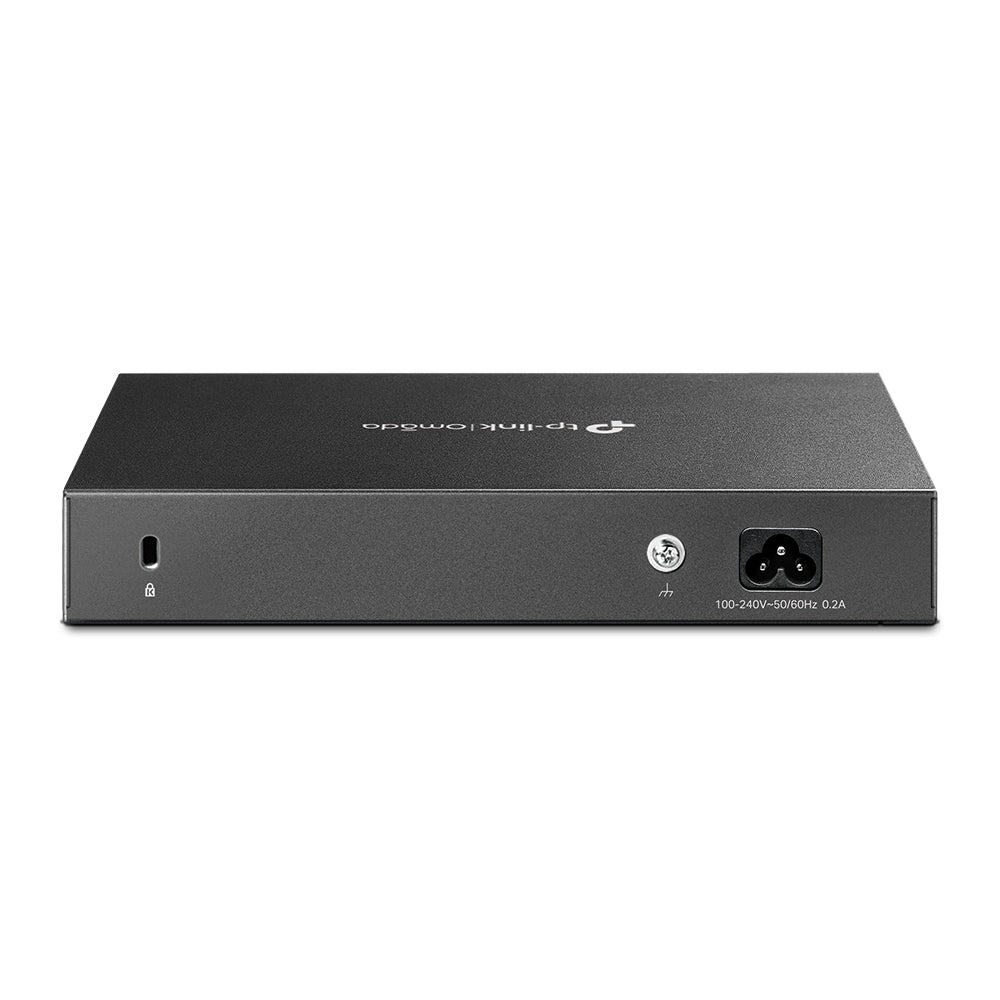

Power supply 100–240 V~50/60 Hz
Flash SPI 4MB + NAND 128MB
RAM 512MB
LED PWR, SYS, SFP WAN, Speed, Link/Activity
Dimensions (Width x Depth x Height) 8.9 × 5.2 × 1.4 inches (226 × 131.2 × 35 mm)
Specifications
Concurrent sessions 150,000
IPsec VPN throughput 291.6 Mbps
Main features
WAN Connection Type • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
MAC Cloning WAN/LAN MAC Address Change†
DHCP • DHCP server
• DHCP address reservation
• Multiple IP interfaces*
• Multi-network DHCP*
IPv6 development‡
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 proxy
Advanced features
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy routing
Bandwidth Control • IP/Port-based bandwidth control
• Guaranteed and limited bandwidth
Load balancing • Intelligent load balancing
• Application-optimized routing
• Link backup (time §, switching)
• Online discovery
NAT • One-to-one NAT§
• Multi-network NAT
• Virtual server
• Port activation§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security • SPI Firewall
• VPN pass
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS protection, Ping of Death
• Local management
Session limit IP-based session limit
VPN

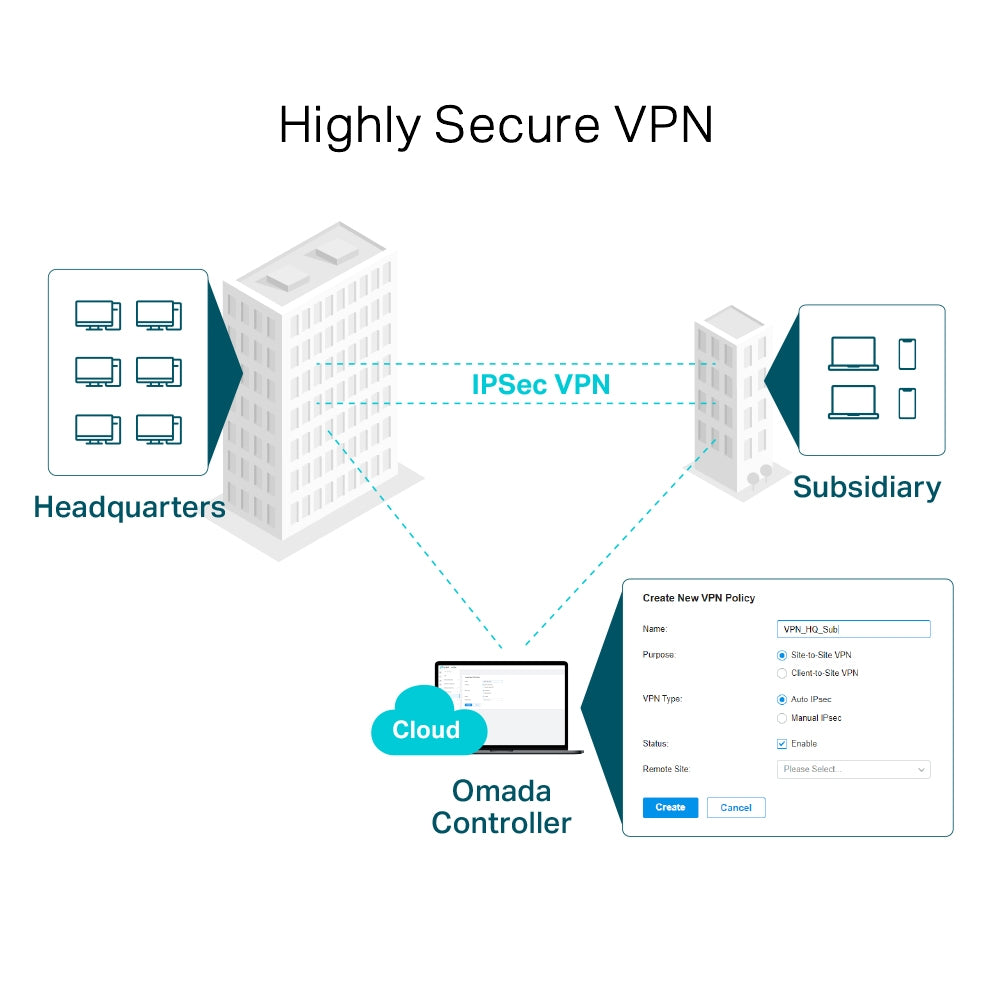

IPsec VPN • 100 IPSec VPN tunnels
• LAN to LAN, client to LAN
• Main, aggressive negotiation mode
• DES, 3DES, AES128, AES192, AES256 encryption algorithm
• IKEv1/v2*
• MD5, SHA1 authentication algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
• PPTP VPN • PPTP VPN Server
• 10 PPTP VPN clients
• 50 tunnels
• PPTP with MPPE encryption
• L2TP VPN • L2TP VPN Server
• 10 L2TP VPN clients
• 50 tunnels
• L2TP over IPSec
• OpenVPN • OpenVPN server*
• 10 OpenVPN clients*
• 50 OpenVPN tunnels*

Security
WEB Group Filtering Filtering§

URL filtering
Web Security§
ARP attack protection • Sending GARP packets§
• ARP scan§
• IP-MAC connection§
Network attack protection • TCP/UDP/ICMP flood protection
• TCP scan blocking (Stealth FIN/Xmas/Null)
• Block ping from WAN
Access Control Source/Destination IP-based Access Control
Authorization
Web Authentication • No authentication
• Simple password*
• Hotspot (Local User / Voucher* / SMS* / Radius*)
• External Radius Server
• External portal server*
• Facebook*
Control
The Omada app does

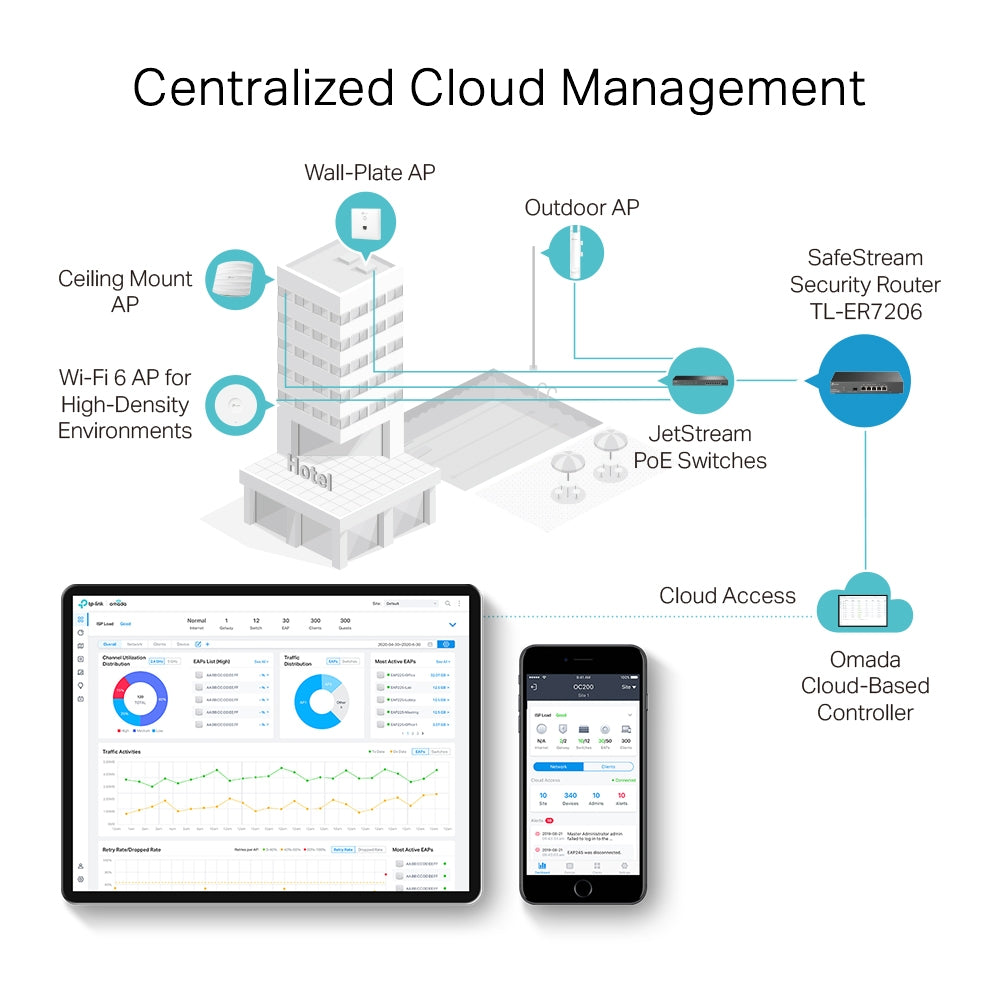

Centralized Management • Omada cloud-based controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada software controller
Cloud access (via OC300, OC200, Omada cloud-based controller or Omada software controller)
Dynamic DNS service (Dyndns, No-IP, Peanuthull, Comexe)
Management • Web management interface
• Remote control
• Export and import configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP synchronization§
• Syslog support
Management features • Automatic device discovery
• Intelligent network monitoring
• Abnormal event alerts
• Unified configuration
• Reboot schedule
• Configuring Captive Portal
• ZTP (Zero-Touch Provisioning)**
Other functions
Certificates CE, FCC, RoHS
Package Contents • TL-ER7206
• Power cable
• Quick installation guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment • Operating temperature: 0–40 ℉ (32–104 ℉);
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Operating humidity: 10–90% RH non-condensing
• Storage humidity: 5–90% RH non-condensing
