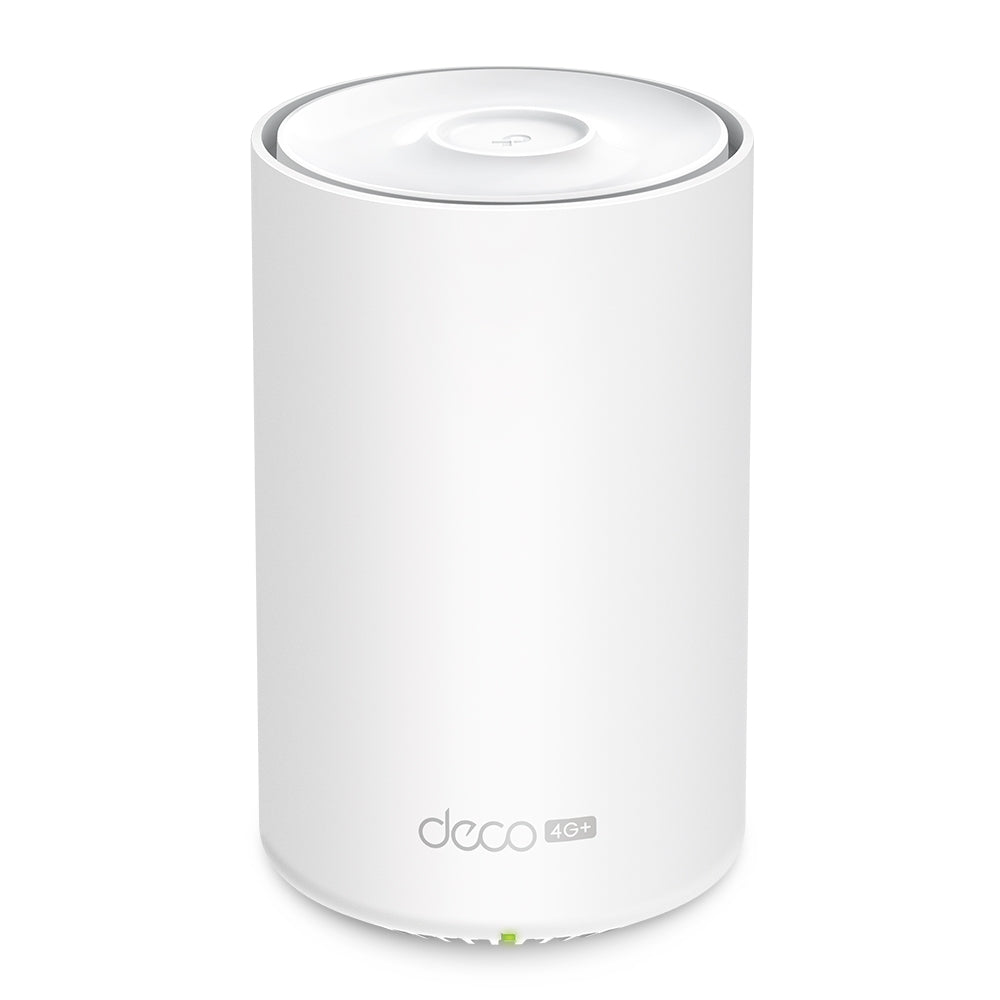

TP-LINK Deco X10-4G(1-pack), 4G + AX1500 Whole Home Mesh Wi-Fi 6 System.

Specification

Brand: TP-Link
Model: Deco X10-4G
Type: Wireless Wi-Fi 6 Mesh Router with 4G/3G Support
Serial/Model Code: Deco X10-4G
Wireless connection (Wireless)
Standards and protocols:
Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5 GHz)
IEEE 802.11n/b/g (2.4 GHz)

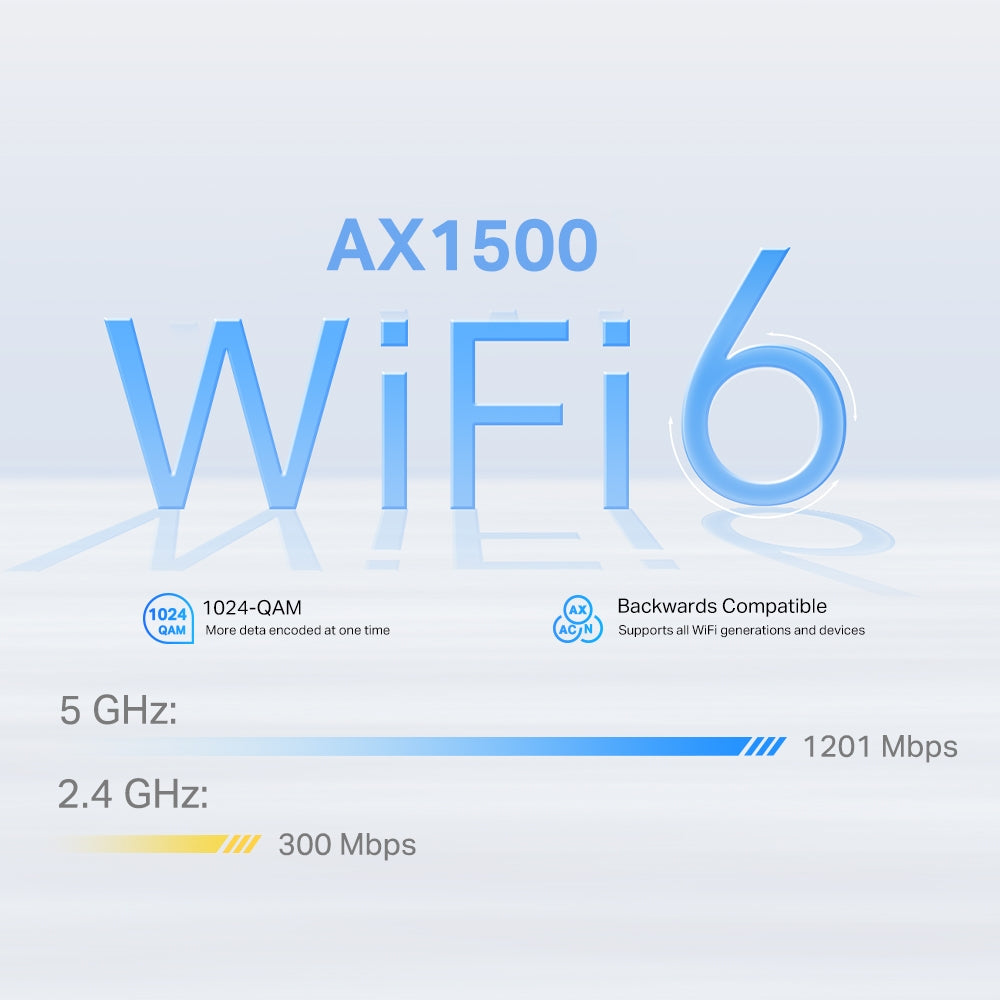

Maximum speed: AX1500
5GHz: 1201Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11ax)

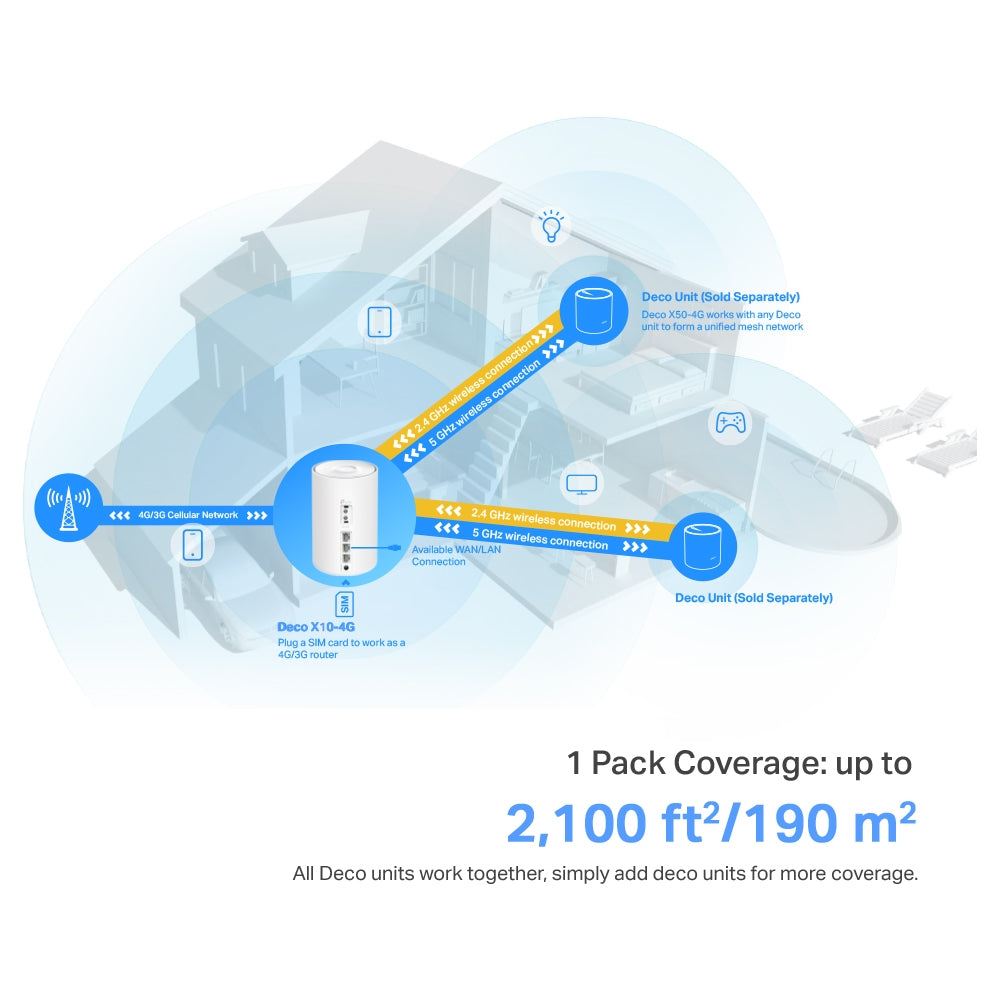

Wi-Fi coverage:
Suitable for 1–2 bedroom homes (1-Pack)
TP-Link Mesh Technology
Ethernet Backhaul – Supports simultaneous connections between Deco units for uninterrupted signal
Antennas:
2 LTE antennas
2 Wi-Fi internal antennas
(Multiple antenna system provides wide coverage and strong signal)
Wi-Fi capacity: High
Dual-Band system — optimal distribution of devices across different frequencies
2×2 MU-MIMO — simultaneous communication with multiple users
OFDMA — Parallel connection with multiple Wi-Fi 6 clients
4 transmission channels — enough bandwidth for multiple devices
Working modes:
3G/4G modem
Router

Access Point
Security
Network protection:
SPI Firewall
Access Control
Guest network:
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Wi-Fi encryption:
WPA-Personal
WPA2-Personal
WPA3-Personal
Hardware
Ethernet ports: 3× Gigabit ports
Automatic WAN/LAN detection
Button: RESET

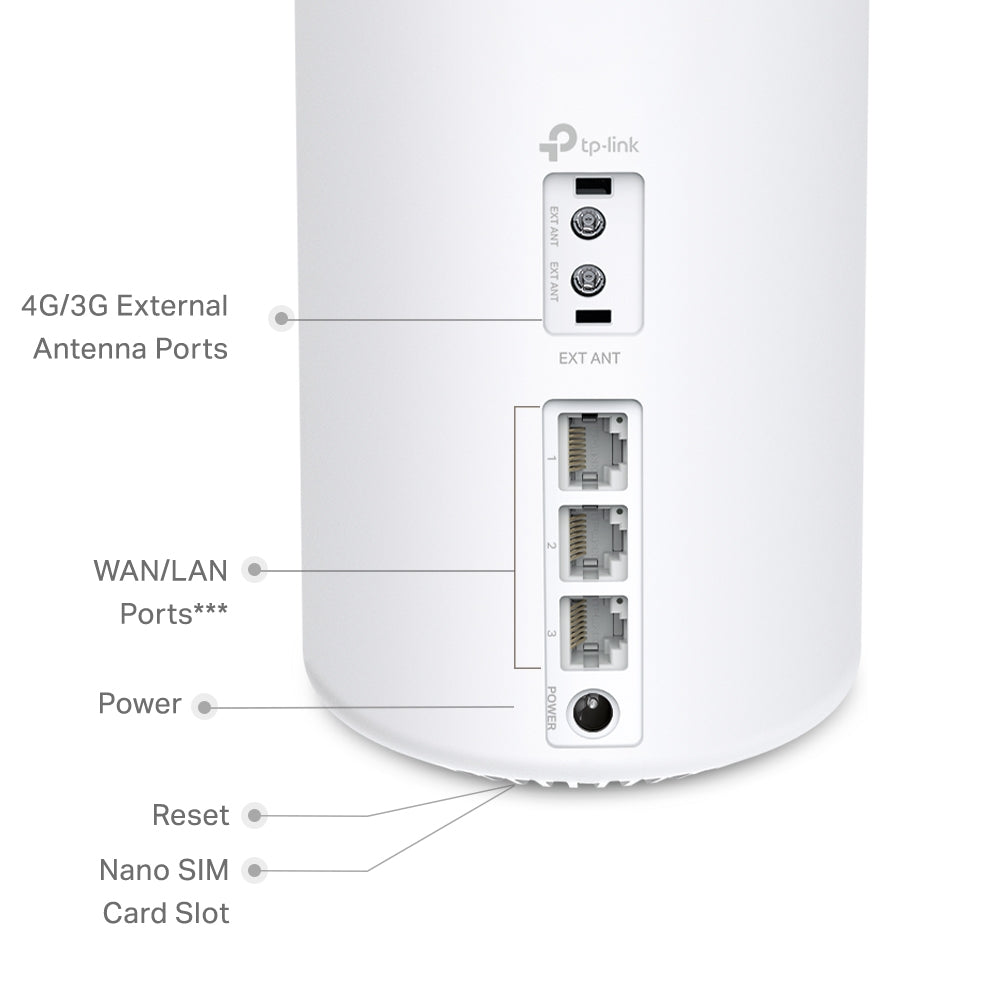

Ports and connections:
2× 3G/4G external SMB antenna interface
Includes 2× SMB to SMA-F adapters
SIM card format: Nano-SIM
Supported mobile networks:
4G (LTE):
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)
Software
Protocols: IPv4, IPv6
Parental control features:
Personalized profiles
Professional content filter
Family Time Control (Family Time, Bedtime, Off Time)
Internet shutdown for specific users
Usage Statistics (Weekly / Monthly Report)
WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
QoS (Quality of Service): Prioritization by device
Cloud Services: OTA Update, TP-Link ID, DDNS
NAT Forwarding: Port Forwarding, UPnP
IPTV support: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
DHCP functions: IP address reservation, client list, DHCP server
Management: TP-Link Deco app (iOS/Android)
Other network services
Web interface: HTTP/HTTPS (ports 80/443)
DNS: Port 53 (TCP & UDP)
DHCP Server: Port 67 (UDP)
Application management: ports 22, 20001, 20002, 30001
Test data
Wi-Fi transmission power (CE standard):
≤20 dBm (2.4GHz)
≤23 dBm (5GHz)
Physical characteristics
Dimensions: 105 × 105 × 167 mm (4.13 × 4.13 × 6.57 inches)
Additional information
Certificates: CE, RoHS
Package contents:
1× Deco X10-4G device
1× RJ45 Ethernet cable
1× Power adapter
2× SMB to SMA adapter
Quick Installation Guide
Working conditions:
Temperature: 0°C–40°C
Humidity: 10%–90% RH
Storage conditions:
Temperature: -40°C–60°C
Humidity: 5%–90% RH
