TP-Link Archer NX500 5G LTE WiFi Router, AX3000 Wireless Dual-Band Gigabit Router

Specification

Hardware features

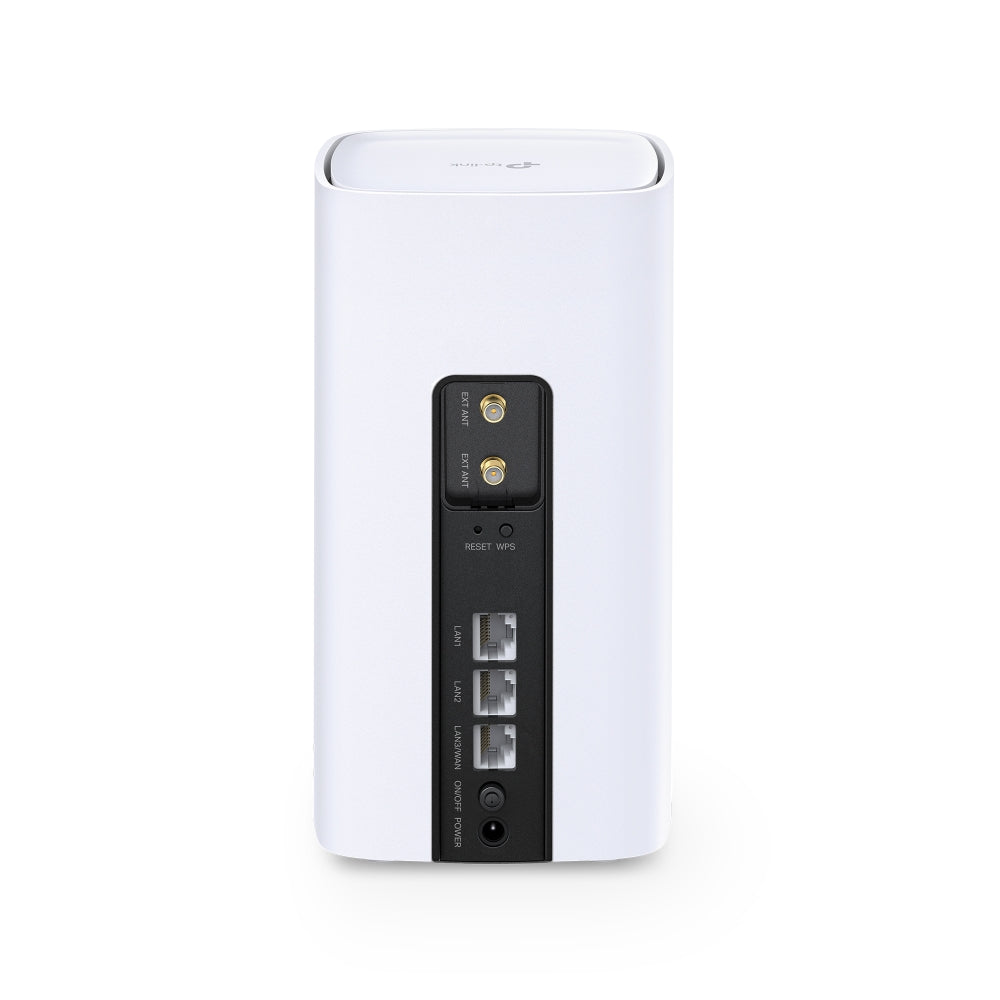

Interface 1 × 10/100/1000 Mbps LAN/WAN port
2 × 10/100/1000 Mbps LAN ports
1 × Nano SIM card slot
2 × external SMA-F antenna interface
Button WPS button, Reset button, On/Off button, Wi-Fi On/Off button
External power source: Power adapter: Input power 100-240v~50/60 Hz 0.6A
Output setting 12VDC 2A
Dimensions (width x depth x height) 3.9 × 3.9 × 7.5 inches (99 × 99 × 190 mm)
Antenna 8 × 5G/LTE internal antennas
3 × Wi-Fi internal antennas
Wireless network features

Wireless standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal speed 574 Mbps on 2.4 GHz, 2402 Mbps on 5 GHz
Receiving sensitivity 5 GHz：
11a 54M: -80 dBm
11ax HE20: -68 dBm
11ax HE40: -65 dBm
11ax HE80: -62 dBm
11ac VHT20: -76 dBm
11ac VHT40: -72 dBm
11ac VHT80: -68 dBm
11n HT20: -79 dBm
11n HT40: -75 dBm
2.4 GHz
11g 54M: -78 dBm
11ax HE20: -65 dBm
11ax HE40: -62 dBm
11ac VHT20: -73 dBm
11ac VHT40: -68 dBm
11n HT20: -75 dBm
11n HT40: -72 dBm
Wireless Features: Enable/Disable: Wireless Radio, Wireless Graphics, WMM, Wireless
Statistics
WAN switching: Yes
Wireless security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
Transmission power: <23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz)
Network type: 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 ​​MHz)
DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
Software features

Quality of service prioritizes network traffic based on device or application
Security DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC address binding, access control
WAN Type Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)
Management features TP-Link Cloud, local management, remote management
DHCP server, DHCP client list, address reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS TP-Link, DynDns, NO-IP
VPN PPTP VPN, IPSec VPN, OpenVPN
Access Control Parental Control, Local Management Control
Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter,
Binding IP and MAC address
Protocols IPv4, IPv6
Guest network 2.4 GHz guest network x 1
5 GHz guest network x 1
Other

Network services are enabled by default on the web server.
Device management and configuration via web page (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP server
Assigning an IP address (DHCP)
• Port: 67 Protocol: UDP
IPv6 DHCP server
Assigning an IP address (DHCPv6)
• Port: 547 Protocol: UDP
DNS
DNS
• Port: 53 Protocol: TCP
Application management
Device management and configuration via app
• Port: 22 Protocol: TCP
• Port: 20002 Protocol: TCP
Other

Certificate CE, RoHS
Package Contents 5G AX3000 Wireless Dual Band Gigabit Router Archer NX500
1.5 m power adapter
RJ45 Ethernet cable
Quick installation guide
System requirements System requirements
Environment: Working temperature: 0℃~40℃ (32℉ ~104℉)
Storage temperature: -40℃~70℃ (-40℉ ~158℉)
Operating humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
