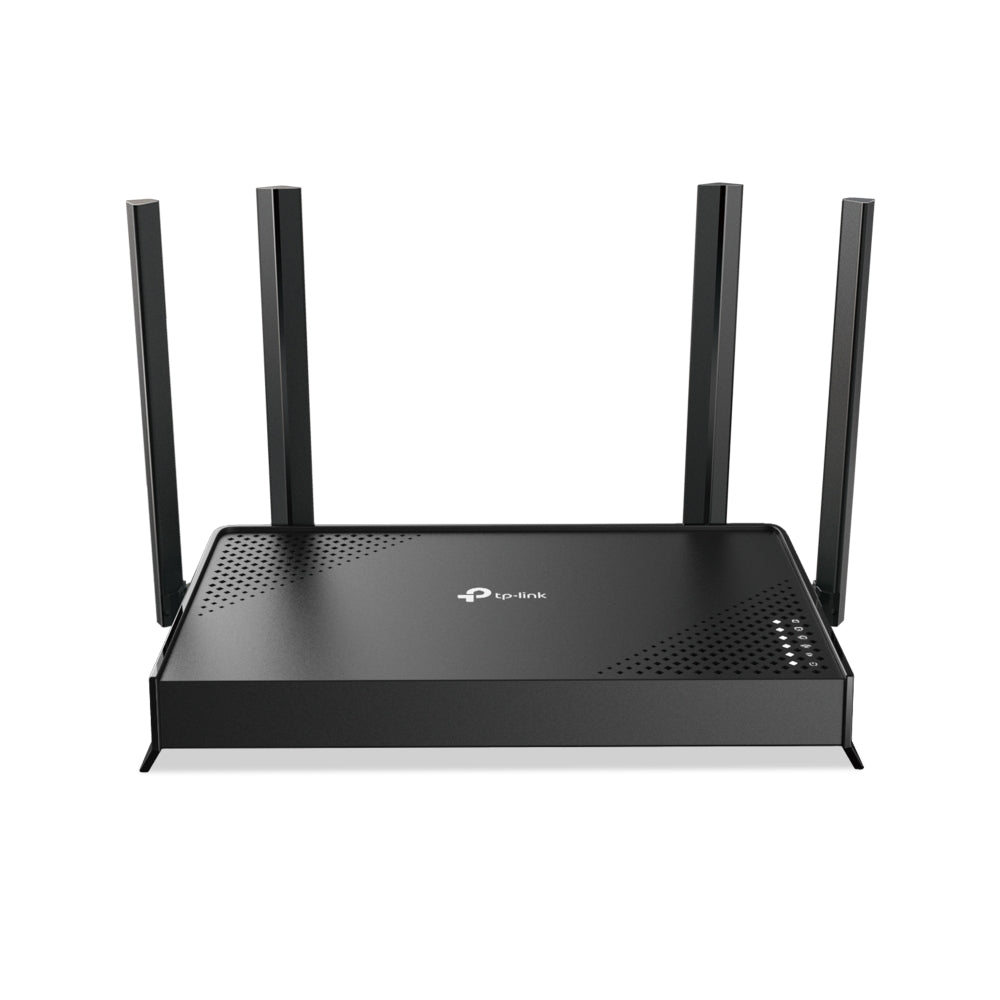

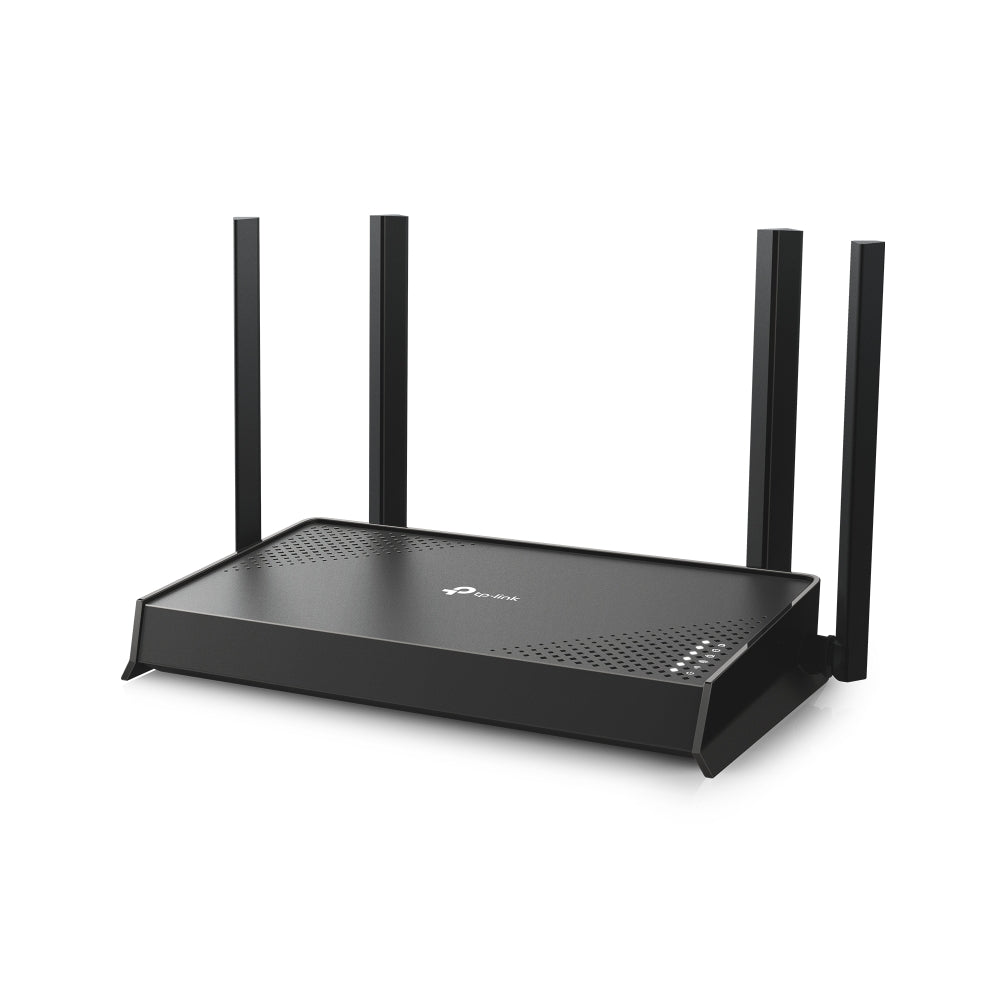

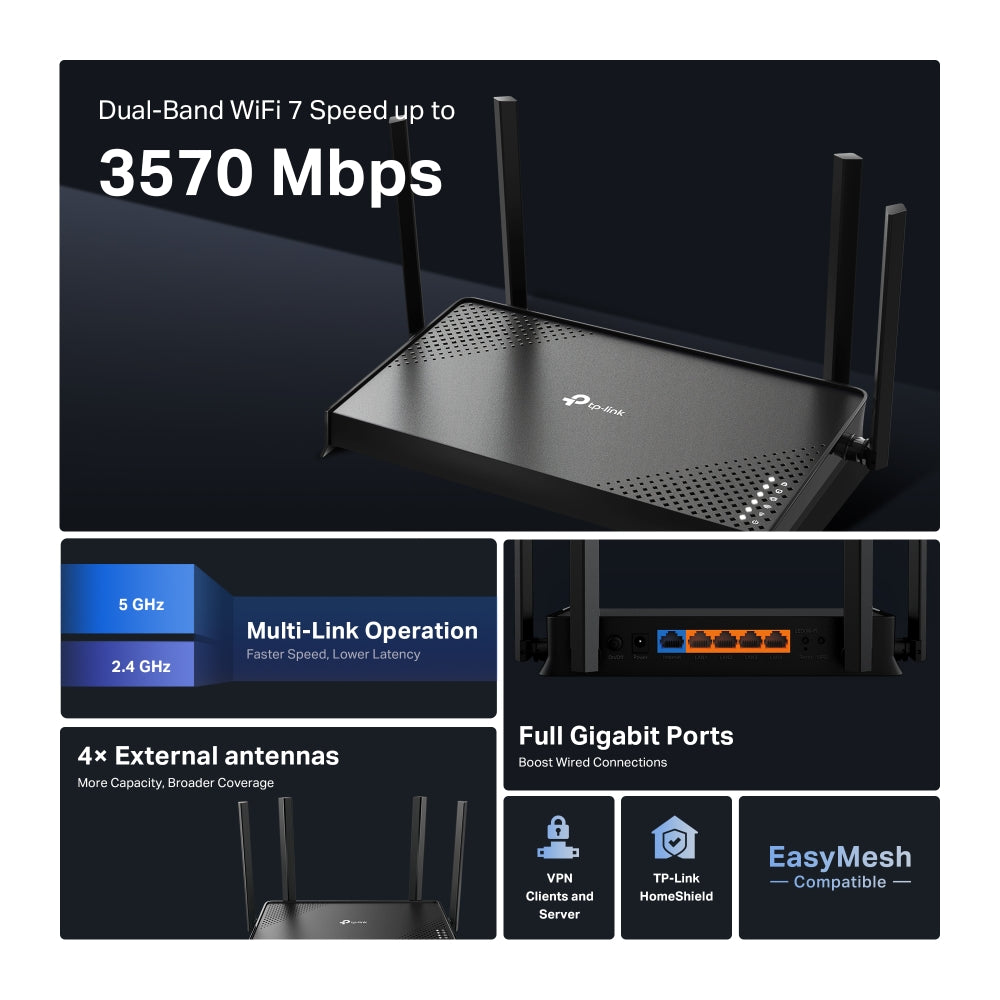

TP-link Archer BE220, BE3600 Dual-Band Wi-Fi 7 Router reliable connections. Gbps WAN Port 4× 1 Gbps LAN Ports

Specification

Wireless

WiFi speed BE3600
• 5 GHz: 2882 Mbps (802.11be)
• 2.4 GHz: 688 Mbps (802.11be)
WiFi range 3 bedroom homes
4× external antenna
Multiple antennas create a signal-boosting array to cover more directions and a larger area

Beamforming
Concentrates wireless signal strength on clients to extend WiFi range
WiFi power is high
Dual range
Distribution of devices in different ranges for optimal performance

2×2 MU-MIMO
Communicates with multiple MU-MIMO clients simultaneously

OFDMA
Interacts with multiple clients simultaneously

Ethereal justice
Improves network efficiency by limiting excessive load

DFS
Access to additional range to reduce latency

4 streams
Connect your devices with more bandwidth
Advanced Features • Multi-Link Operation (MLO)
• 4K-QAM
• Versatile RU
• EasyMesh compatible
• Works with Alexa and Google Assistant
• IoT network
Wireless mode • Router mode
• Access point mode
Security

Network Security • SPI Firewall
• Access control
• IP and MAC binding
• Application-level gateway

• HomeShield security
Real-time IoT protection
Malicious website blocker
Intrusion prevention system
DDoS attack prevention
Home network scanner
Guest Network • 1× 5 GHz Guest Network
• 1× 2.4 GHz guest network
VPN Server • OpenVPN Server
• PPTP VPN server
• L2TP VPN server
• WireGuard VPN server
VPN Client • Open VPN Client
• PPTP VPN client
• L2TP VPN client
• WireGuard VPN client
WiFi encryption • WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)
Equipment

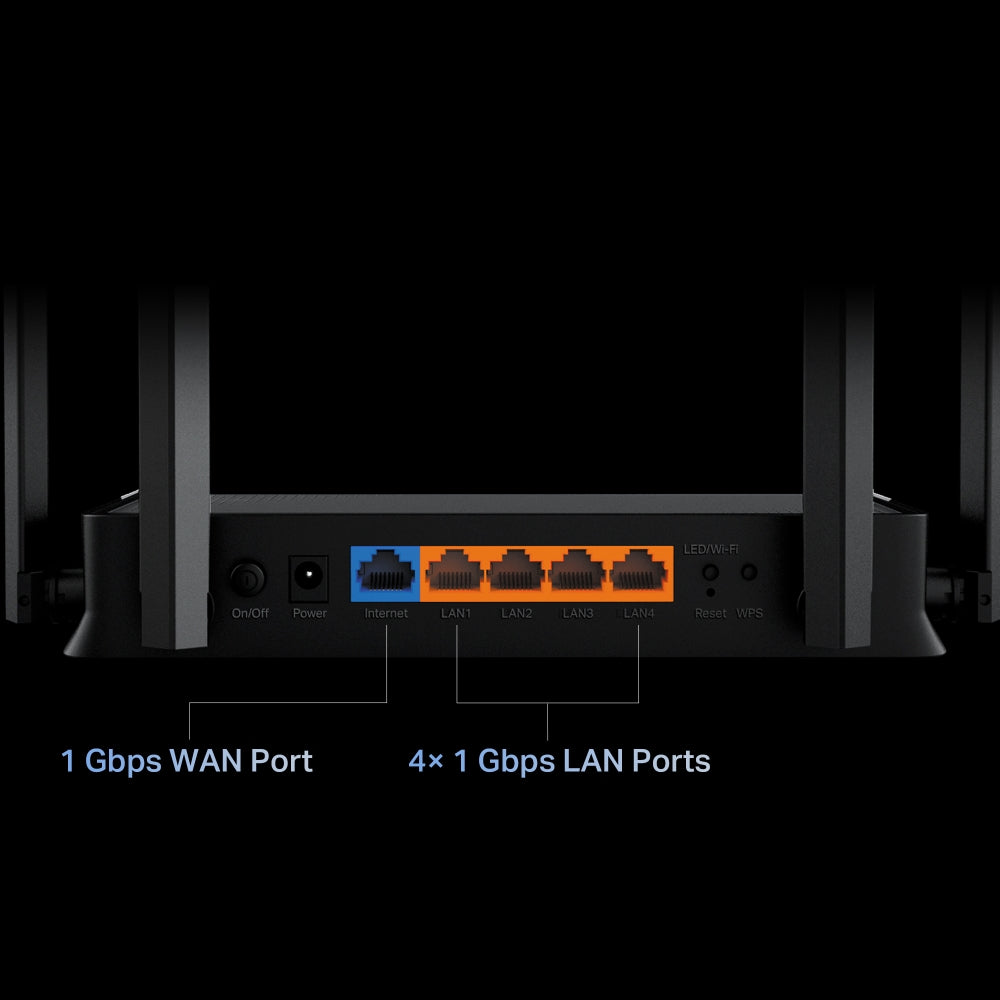

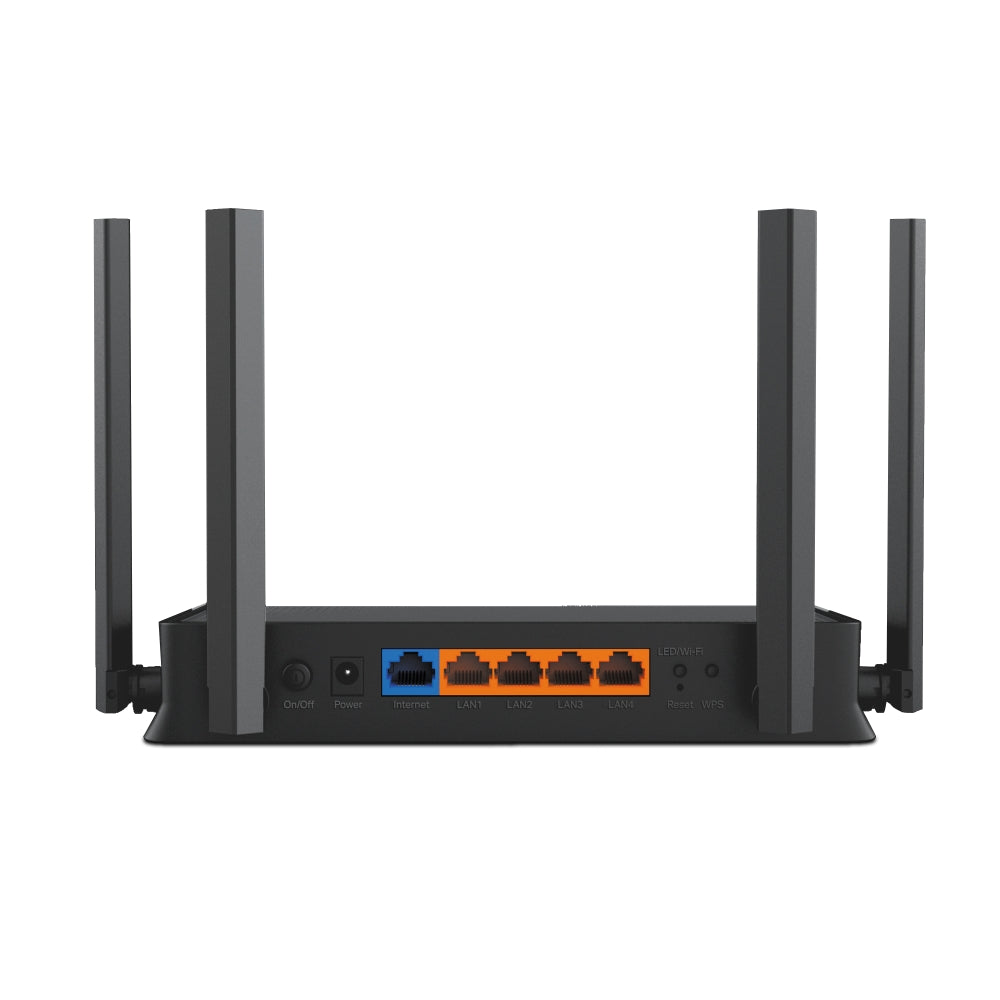

Ethernet ports • 1× 1 Gbps WAN
• 4× 1 Gb/s LAN
Buttons • On/Off button
• LED/Wi-Fi button
• WPS button
• Reset button
Power supply 12 V ⎓ 2 A (USA)
12 V ⎓ 1.5 A (EU)
Software

Protocol • IPv4
• IPv6
HomeShield Service Kit
Learn more >
EasyMesh is compatible with EasyMesh
Parental Controls HomeShield Parental Controls
Custom profiles
Professional content filter library
Family time
Bedtime
Shutdown time
Time rewards
Family online time rating
Internet pause
Weekly and monthly reports
WAN Type • Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service QoS by device
Cloud service • Automatic software updates
• TP-Link ID
• DDNS
NAT Forwarding • Port Forwarding
• Port activation
• DMZ
• UPnP
IPTV • IGMP Proxy
• IGMP snooping
• Bridge
• Tag VLAN
DHCP • Address Reservation
• DHCP client list
• Server
DDNS • TP-Link
• NO-IP
• DynDNS
Management features • Tether app
• Website
Other

Network services are enabled by default on the web server.
Device management and configuration via web page (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
DNS
• Port: 53 Protocol: TCP and UDP
DHCP server
Assigning an IP address (DHCP)
• Port: 67 Protocol: UDP
Application management
Device management and configuration via app
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or ​​other JavaScript-compatible browser

Cable or DSL modem (if needed)

Internet service provider subscription (for internet access)
Certificates CE, FCC, RoHS
Environment • Operating temperature: 0℃~40℃ (32℉ ~104℉)
• Operating humidity: 10%~90% non-condensing
