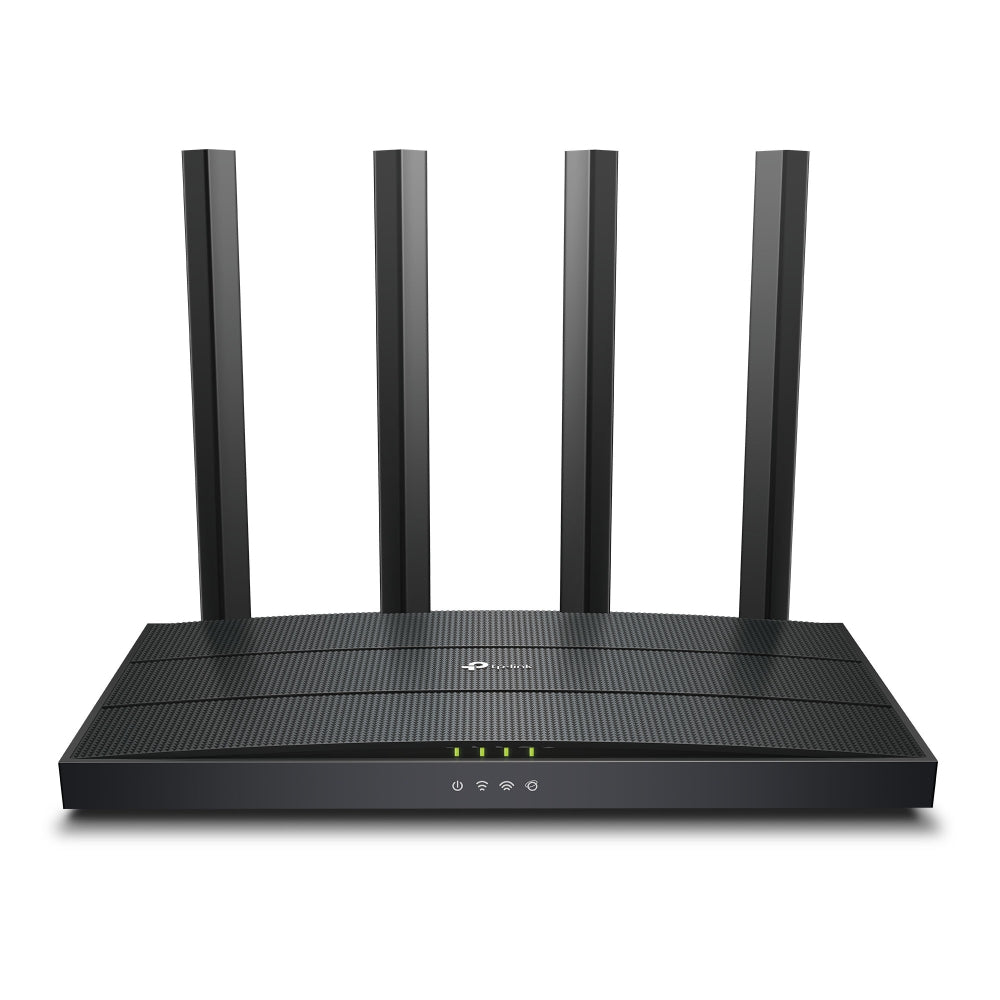

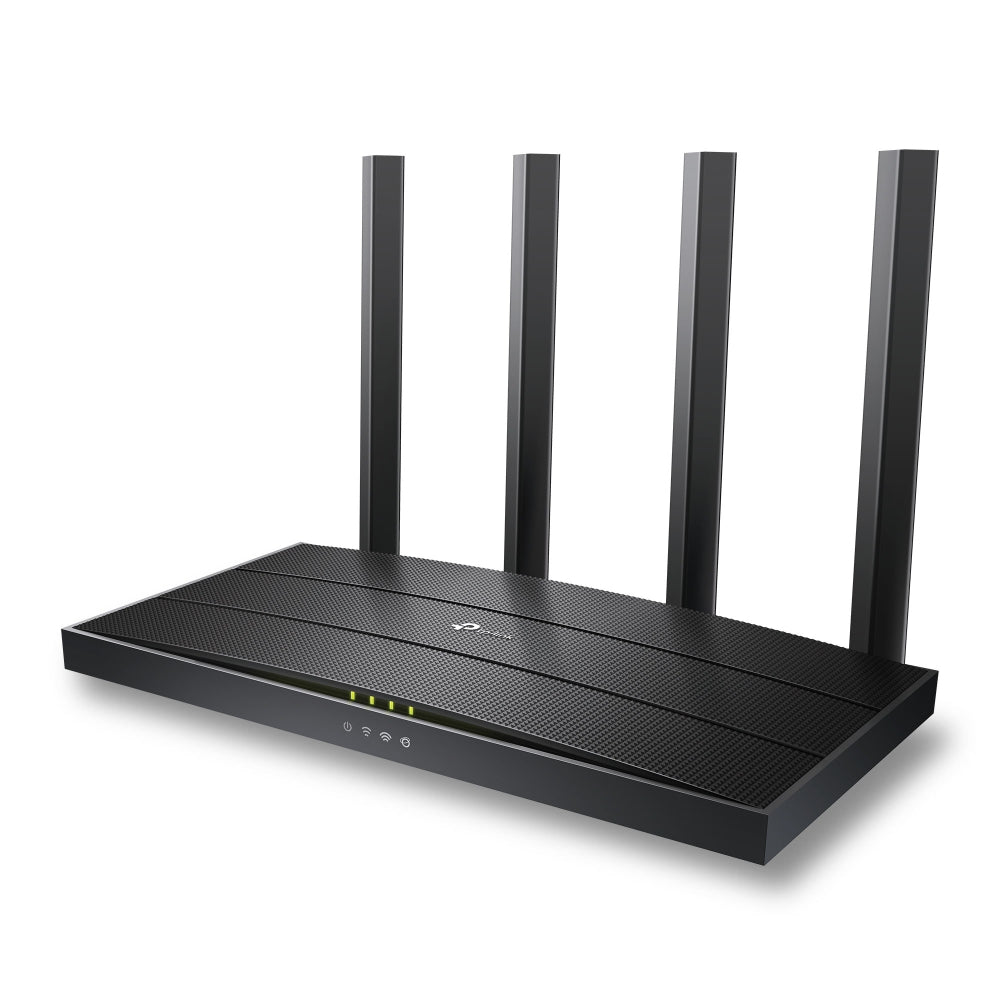

TP-Link Archer AX12, AX1500 Wi-Fi 6 Router

Specification

ᲣᲢ
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)
WiFi range 2-3 bedroom homes
4× fixed high-quality antennas
Multiple antennas create a signal-boosting array to cover more directions and a larger area

Beamforming
Concentrates wireless signal strength on clients to extend WiFi range
WiFi capacity high
Dual band
Allocating devices to different bands for optimal performance

OFDMA
Connects to multiple Wi-Fi 6 clients simultaneously

Airtime fairness
Improves network efficiency by limiting excessive occupancy

4 streams
Connect your devices with more bandwidth
Working modes Router mode
Access point mode
Equipment

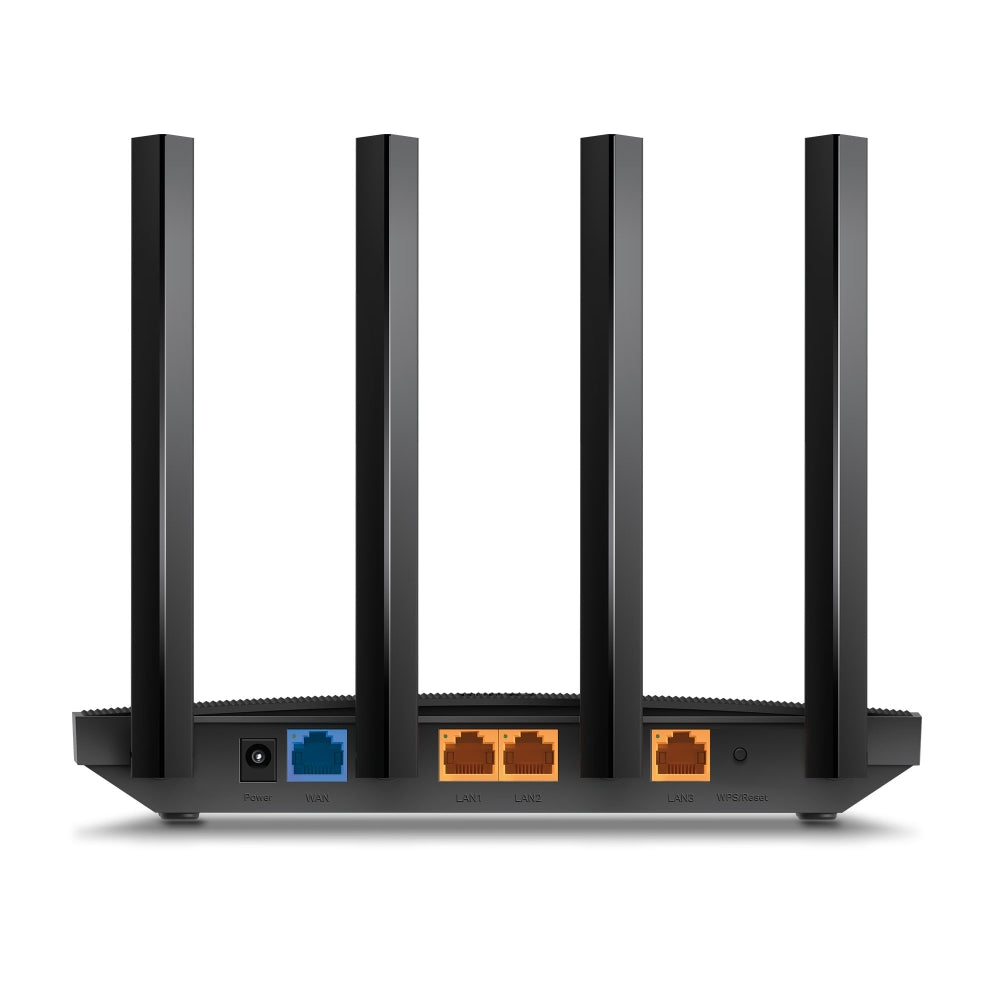

Ethernet ports 1× Gigabit WAN port
3 × Gigabit LAN ports
Buttons WPS/Wi-Fi button
Reset button
Power 12 V ⎓ 1 A
Security
WiFi encryption WPA2-PSK
WPA2-PSK/WPA-PSK
WPA3-Personal
WPA3-Personal/WPA2-PSK
WPA2-Enterprise
WPA/WPA2-Enterprise encryption
Network Security SPI Firewall
Access control
IP & MAC required
Application layer gateway
Guest network 1× 5 GHz guest network
1× 2.4 GHz guest network
VPN server OpenVPN
PPTP
Software
Protocols IPv4
IPv6
Parental Control URL Filtering
Time control
WAN Types Dynamic IP
Static IP
PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
OTA software update
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port launch
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Mark the VLAN
DHCP address reservation
DHCP client list
Server
DDNS TP-Link
NO-IP
DynDNS
Other
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC
OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or higher
Java-enabled browser
Cable or DSL modem
Subscription to an Internet Service Provider (for Internet access)
Certifications FCC, CE, RoHS
Ambient operating temperature: 0℃~40℃ (32℉ ~104℉)
Storage temperature: -40℃~60℃ (-40℉ ~140℉)
Operating humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Test data
WiFi transmission power CE:
<20 dBm (2.4 GHz)
<23dBm (5.15GHz~5.25GHz)
FCC:
<30 dBm (2.4 GHz &amp; 5.15 GHz~5.825 GHz)
WiFi receiver sensitivity 5 GHz:
11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm
2.4 GHz:
11g 6Mbps: -96 54Mbps: -80
HT20-MCS0: -97 MCS7: -78
HT40-MCS0: -94 MCS7: -75
Physical
Dimensions (W×D×H) 8.5 × 4.6 × 1.3 inches
(215 × 117 × 32 mm)
Package Contents: Archer AX12 Wireless Router
Power adapter
RJ45 Ethernet cable
Quick installation guide
