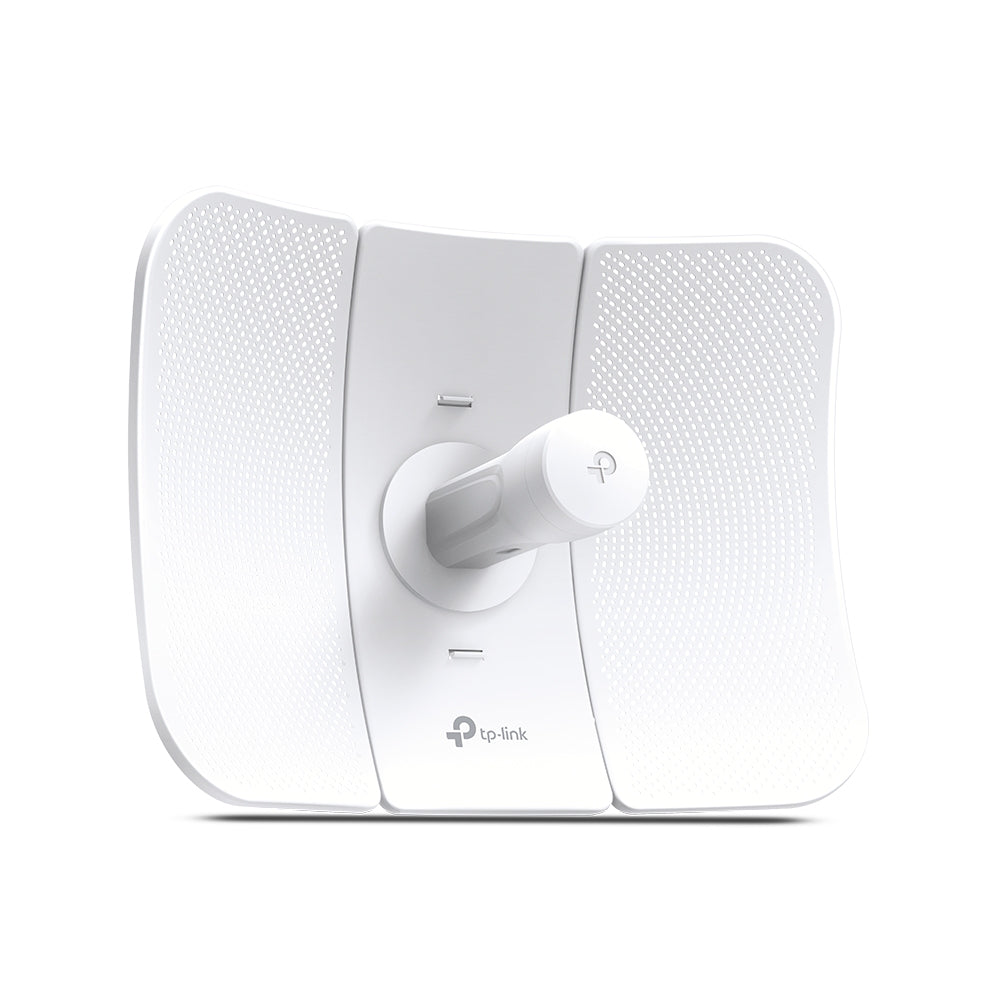

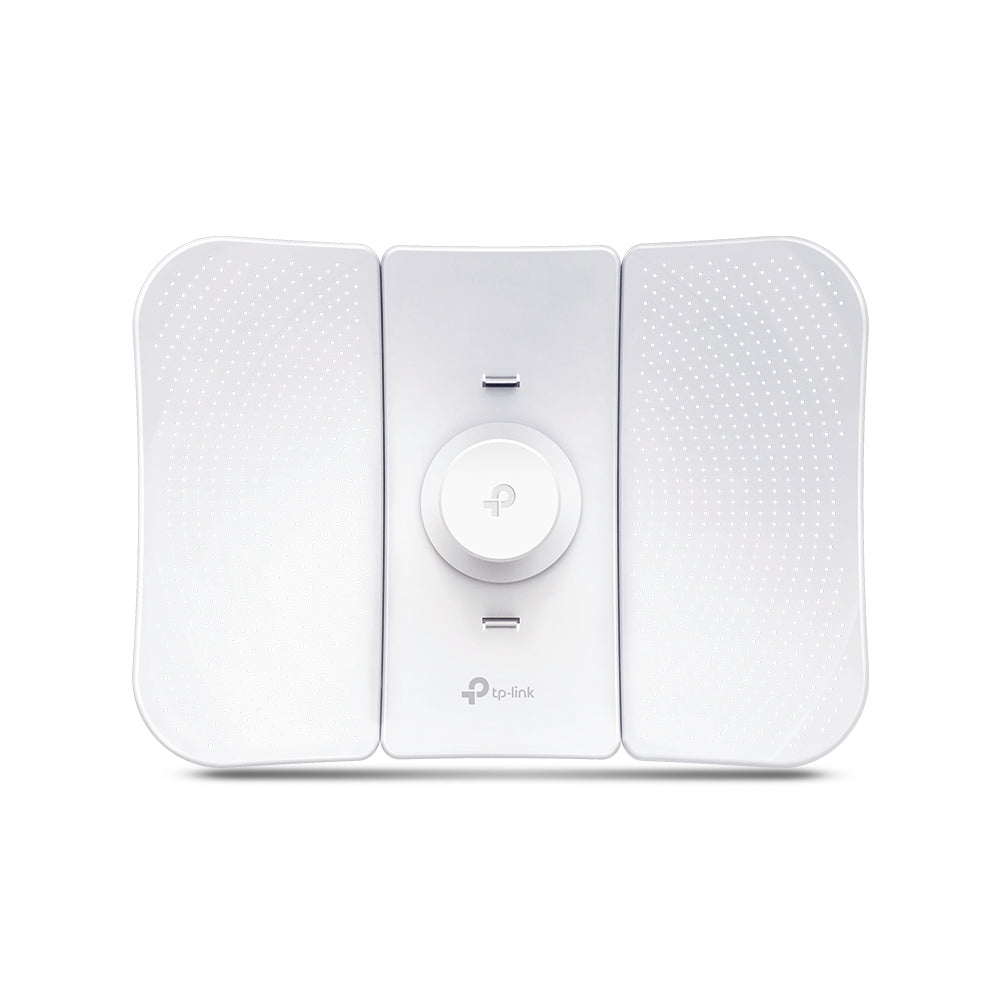

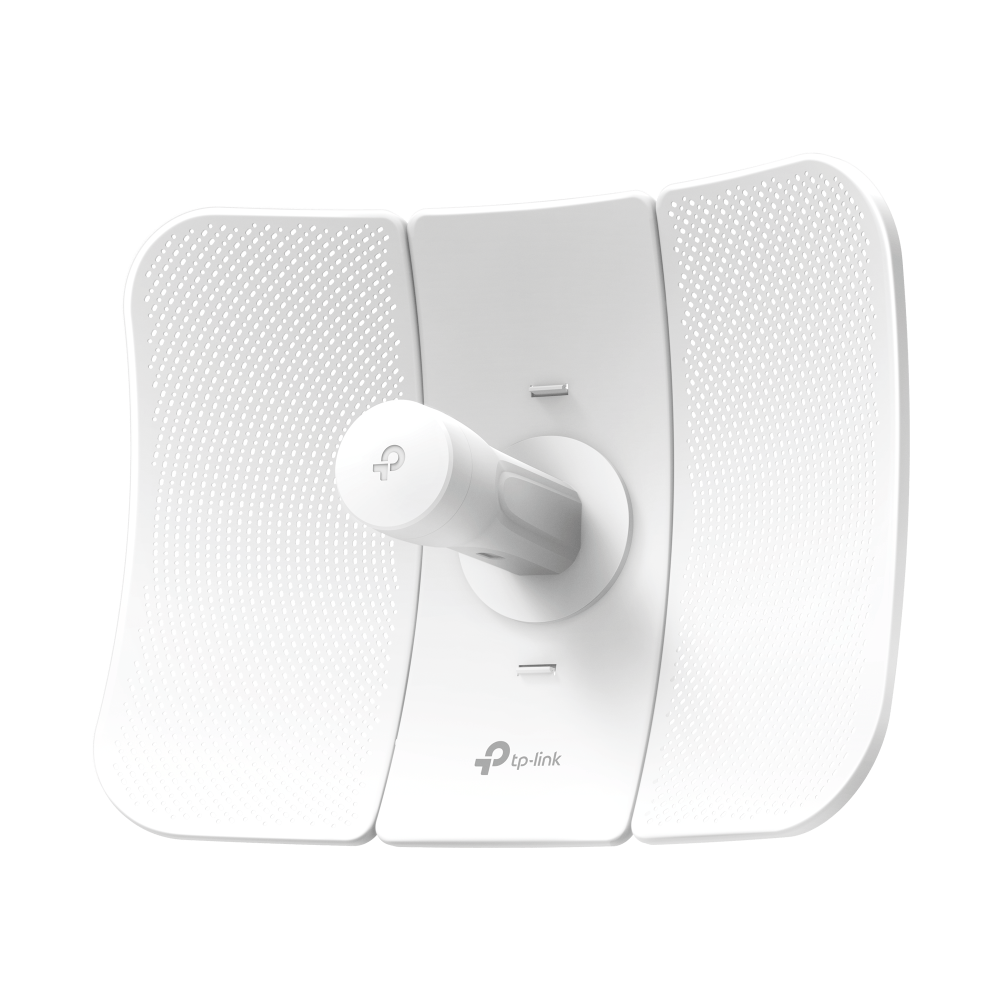

CPE710, TP-LINK, 867Mbps Wireless 5GHzOutdoor MAXtream 23dBi CPE

Specification

Hardware features

Processor Qualcomm 750MHz CPU, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB Flash
Interface 1 10/100/1000 Mbps Secure Ethernet Port (LAN/POE)
1 reset button
Power supply: Passive power supply via Ethernet via LAN (+4.5 pin; -7.8 pin)
Voltage range: 16-27 V DC
Dimensions (Width x Depth x Height) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 inches)
Antenna gain 23 dB
Antenna beam width 9° (azimuth)/7° (elevation)
Protection 15 kV ESD protection
6 kV lightning protection
Housing material: External PC-stabilized plastic
Weatherproof: IP65 waterproof and dustproof design
Wireless features

Wireless standards IEEE 802.11a/n/ac
Wireless speed up to 867 Mbps (80 MHz, dynamic)
Up to 400 Mbps (40 MHz, dynamic)
Up to 173.4 Mbps (20 MHz, dynamic)
Frequency 5.15–5.85 GHz
Transmission power max. 27 dBm (adjustable power by 1 dBm)
Software features

Network Configuration WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access control
Static routing
Conductivity control
IP and MAC binding
Wireless configurations, channel width selection: 20/40/80MHz
Automatic channel selection
Transmission power control
Dynamic Frequency Selection (DFS)
WDS enable/disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption,
Enable/disable SSID broadcast
Multiple SSID with VLAN tagging (AP mode only)
Set distance/ACK timeout
Wireless MAC address filter
Wireless Extended:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long range PtP
Discover and remotely control management functions via the Pharos Control app
HTTP/ HTTPS web-based management
System log
SNMP agent (v2c)
Ping Watch Dog
Dynamic DDNS
SSH server
System Instrument Indicators: Signal Strength/ Noise/ Transmission CCQ/ CPU/ Memory
Monitors: Bandwidth/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum analyzer
Speed ​​test
Ping
Traceroute
Antenna alignment
System-level optimization Optimized IGMP Snooping / Proxy for multicast applications
POE adapter features

Dimensions (width x depth x height) 85.8×43.9×29.7 mm
Interfaces 1 AC jack with grounding
1× 10/100/1000 Mbps secured Ethernet port (power + data)
1× 10/100/1000 Mbps Secure Ethernet Port (Data)
Remote reset button
Power status LEDs green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.5A max.
+4, 5 pins; -7, 8 pins. (Supports up to 60m via Ethernet with power supply)
Efficiency >84.29%
Certificates CE/FCC/UL/IC/GS/PSB/SAA/S-Mark/KC-mark
Other

Certificate CE, FCC, RoHS, IP65, IC
Package contents: Wireless CPE for outdoor use
24V 0.5A Passive PoE Adapter
Pole mounting kits
AC power cord
Installation Guide
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: For an improved user experience, we recommend using one of the following web browsers: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment: Working temperature: -40℃~70℃ (-40℉~158℉)
Storage temperature: -40℃~70℃ (-40℉~158℉)
Operating humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
